Hand brake cable: removal and fitting (vehicles with drum brakes)
Hand brake cable: removal and fitting (vehicles with drum brakes)
Hand brake cable: removal and fitting (vehicles with drum brakes)
Removing
–
Release hand brake.
–
Dismounting the center console:
→ General body repairs, assembly work, interior; Rep. Gr.68
.
–

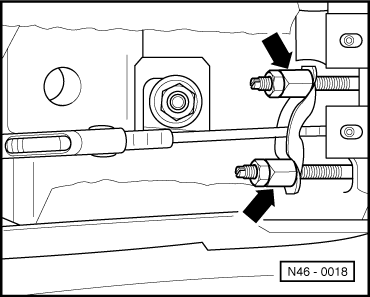

Loosen readjusting nut
-arrows-
sufficiently to disconnect the hand brake cable from the expansion tab.
–
Raise the vehicle.
–
Remove wheel.
–
Remove brake drum:Before removing, retract the brake linings through the wheel bolt threaded holes
→ Fig.
–
Disconnect hand brake cable:
–

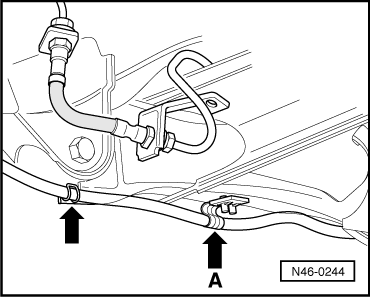

Release the brake cable from the control support on the rear axle body
-arrows-
and unhook it from the support
-arrow A-
.
–

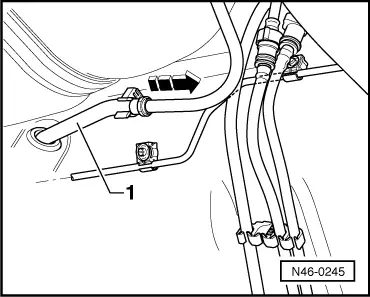

Remove the hand brake cable
-1-
from the guide tube by pulling it in the direction of the arrow.
Installation
–
Insert the hand brake cable into the guide tube.
–
Hang the brake cable from the hand brake lever.
–
Installing the brake drum.
Vehicles with drum brakes up to 08.00
–
Adjust the wheel bearing play
→ Fig.
Continued for all vehicles
–
Connect hand brake cable to its support in the body of rear axle
-arrow A-
.
–
The hand brake securing ring must be in the centre of the pin.
–
Connect hand brake cable to the support
-arrow-
.
–
Connect hand brake cable the expansion tab.
–
Pretension the cable using the adjusting nuts
-arrows-
.
–
Adjust hand brake
→ Chapter
.
