Leon Mk2
|
|
|
| Item | Engine/equipment | Petrol engines: 37 kW / 1.0 ltr., 44 kW / 1.4 ltr. Only diesel engines: 44 kW / 1.7 ltr. (SDI), 55 kW / 1.4 ltr. (TDI) | |||
| Brake master cylinder | Ø at mm | 20.64 (without ABS) 22.20 (with ABS) | |||
| Brake servo | Ø at inches | 8′′ (without ABS) St. wheel on left with ABS 9′′ St. wheel on right with ABS 8′′ | |||

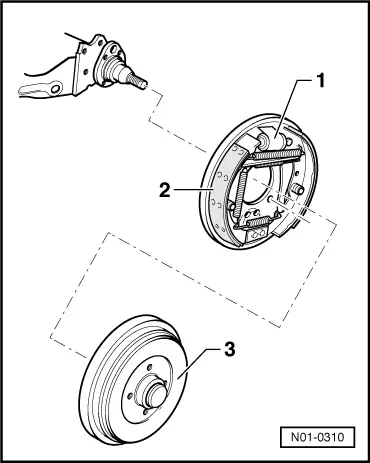

| 1 | Wheel brake cylinder | Ø at mm | 15.87 (without ABS) 17.46 (with ABS) | ||
| 2 | Brake pad thickness | mm | 5.00 | ||
| Lining width | mm | 30.00 (without ABS) 40.00 (with ABS) | |||
| 3 | Brake drum | Ø at mm | 180.00 (without ABS) 200.00 (with ABS) | ||
|
|
| Item | Engine/equipment | Petrol engines: 74 kW / 1.4 ltr. | |
| Brake master cylinder | Ø at mm | 23.81 | |
| Brake servo | Ø at inches | St. wheel on the left 9′′ St. wheel on the right 8′′ | |
| 1 | Brake disc | Ø at mm | 225.00 |
| Brake disc thickness | mm | 10.00 | |
| 2 | Brake pad thickness | mm | 12.00 |
| 3 | Caliper piston | Ø at mm | 38.00 |
