| Install in the reverse order to removal. |
| –
| Secure the stabiliser bar to the subframe. Tightening torque → Anchor |
| –

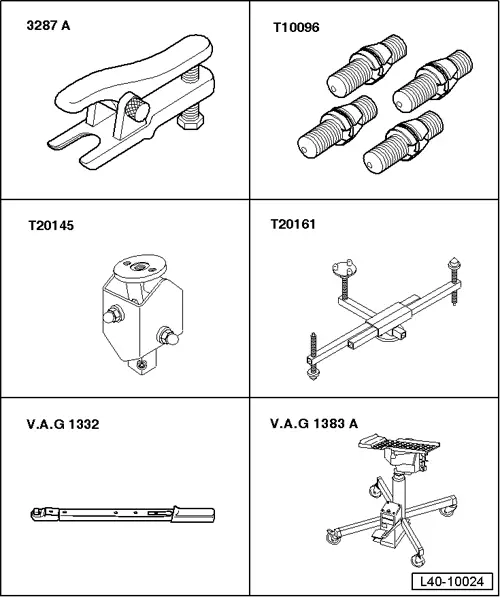

| Sit the strut on the bodywork, using the fastening devices - T10096 - . |
| –
| Permanently secure the strut to the bodywork. Replace the fastening devices -T10096- with new bolts in an alternate sequence. |
| –
| Secure the pendulum support to the gear box Tightening torque → Anchor |
| –
| Screw the link bar to the stabiliser bar. Tightening torque → Anchor |
| –
| Bolt the ball joint to the transverse swinging arm. Tightening torque → Anchor |
| –
| To tighten the screws to the respective tightening torque, raise the suspension until the unladen weight position is reached → Chapter. |
| Tightening torques of the front axle → Chapter. |
| –
| Fit the front wheels. Tightening torque → Chapter |
| An axle alignment has to be carried out if the subframe is replaced → Chapter. |
Note | t
| After assembly, the steering wheel position must be checked during a test drive. |
| t
| If the steering wheel is not in the straight position facing forwards, an axle alignment must be carried out → Chapter. . |
|
|
|
