Fabia Mk1

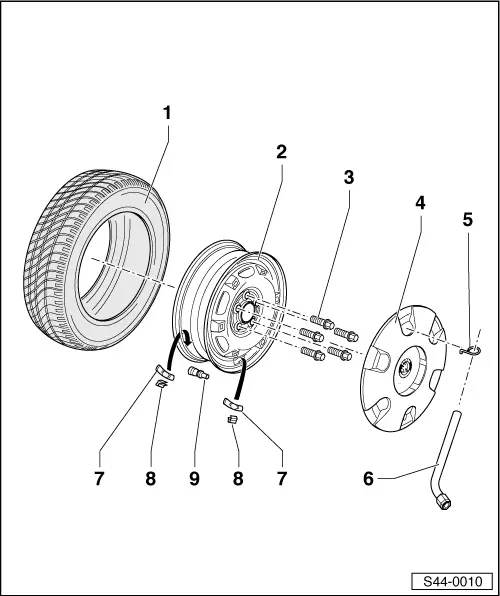

Wheel with steel rim |
Note
t | The steel rim and wheel trim cap may differ from the figure. |
t | The contact surface tread may differ from the shown contact surface tread. |
t | When using anti-theft wheel bolts, the anti-theft bolt must be mounted in direction of the valve. |
1 - | Tyres |
2 - | Steel rim |
q | 5J x 13, ET 35 |
q | 5J x 14, ET 35 |
q | 6J x 14, ET 43 |
q | 6J x 15, ET 43 |
3 - | Wheel screw, 120 Nm |
4 - | Remove wheel trim cap |
q | pull off with pull-off hook - Pos. 5 |
q | different version → electronic catalogue of original parts |
5 - | Pull-off hook |
q | included in tool kit |
6 - | Wheel bolt key |
q | included in tool kit |
7 - | Balancing weights |
q | max. 60 g allowed per rim flange |
8 - | Retaining spring for balancing weights |
9 - | Valve |
q | Assignment → Electronic Catalogue of Original Parts |
