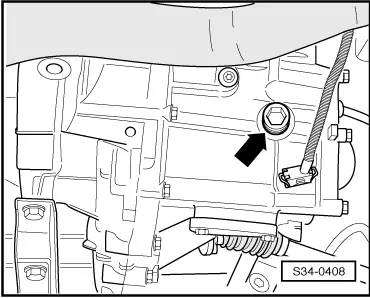

| Unscrew plug for inspecting gear oil -arrow-. |
| The oil is at the correct level if the gear is filled up to the lower edge of the oil filler hole. |
| –
| Tighten plug -arrow-, 25 Nm. |
| When re-filling, pay attention to the following points: |
| –
| Pour in gear oil up to lower edge of filler hole. |
| –
| Start engine, engage a gear and allow gearbox to rotate for about 2 minutes. |
| –
| Switch off engine, unscrew plug -arrow- and again top up gear oil to lower edge of filler hole. |
| –
| Tighten plug -arrow-, 25 Nm. |
|
|
|
