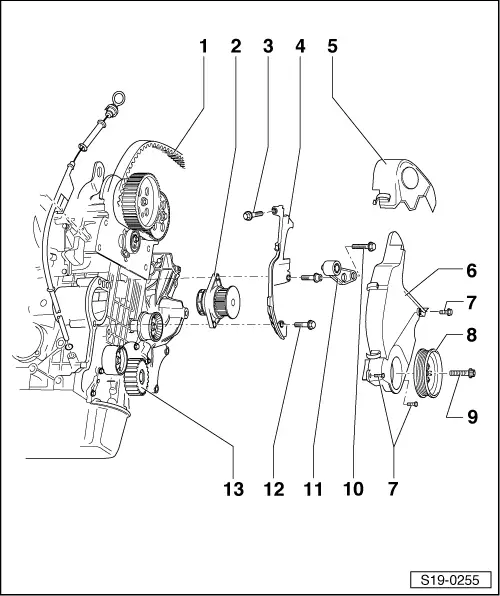

Coolant pump - Summary of components |
1 - | Main drive toothed belt |
q | before removing mark running direction |
q | check for wear |
q | do not kink |
q | Routing of toothed belt → Chapter |
q | removing and installing, tensioning → Chapter |
2 - | Coolant pump |
q | with integrated gasket - warning - it must not be removed from the pump |
q | replace completely if untight or damaged |
q | check smooth operation |
q | removing and installing → Chapter |
3 - | 10 Nm |
4 - | Rear toothed belt guard |
5 - | Top toothed belt guard |
6 - | Bottom toothed belt guard |
7 - | 12 Nm |
q | replace |
8 - | V-ribbed belt pulley |
q | pay attention to locating element when installing |
q | Removing and installing ribbed V-belt → Chapter |
9 - | Screw for crankshaft belt pulley |
q | replace |
q | Pay attention to procedure for tightening → Chapter |
q | tightening may occur in successive stages |
q | the torquing angle can be measured with a commercially available angle measuring plate, e.g. -Hazet 6690- |
10 - | 50 Nm |
q | mounted up to 05/2005 |
11 - | Guide pulley |
q | mounted up to 05/2005 |
12 - | 20 Nm |
13 - | Crankshaft - toothed belt sprocket |
q | pay attention to locating element when installing |
