Fabia Mk1

Work sequence when connecting the battery
Work sequence when connecting the battery
  WARNING
Please observe the following additional instructions after working on the airbag system or on the belt tighteners or the safety belts:
t  Switch off the ignition before attaching the battery.
t  Nobody should be in the vehicle when the battery is being connected.
  Note
t  Neither grease nor oil the battery terminals.
t  The battery terminals must only be fitted by hand without using any force in order to avoid damaging the battery housing.
t  Install the battery terminals in such a way that the battery terminal with the terminal is on the same level or protrudes.
t  If both terminals are disconnected, only then disconnect the battery terminal (+).

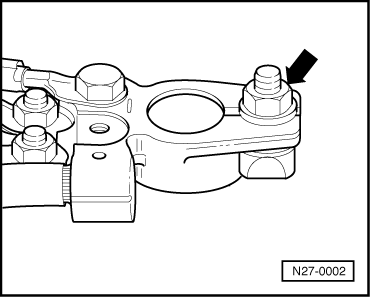

–  When connecting, fit pole shoe of earth line onto negative terminal of battery and tighten the nut -arrow- (6 Nm).
When the battery is reconnected perform the following operations depending on the vehicle equipment:
t  Encode radio sets fitted with anti-theft coding → Operating Instructions for car radio.
t  Set the clock → Inspection and Maintenance; Rep. Gr.02.
t  Check the window lifter/comfort electrics → Fabia
t  Perform automatic test sequence → Inspection and Maintenance; Rep. Gr.02.
  Note
If the fault memory of the engine control unit is erased, generate readiness code → Relevant Engine - Fuel Injection; Rep. Gr.01.
  N27-0002
