Fabia Mk2

Removing and installing the battery for the (foldable) radio control key
Removing and installing the battery for the (foldable) radio control key

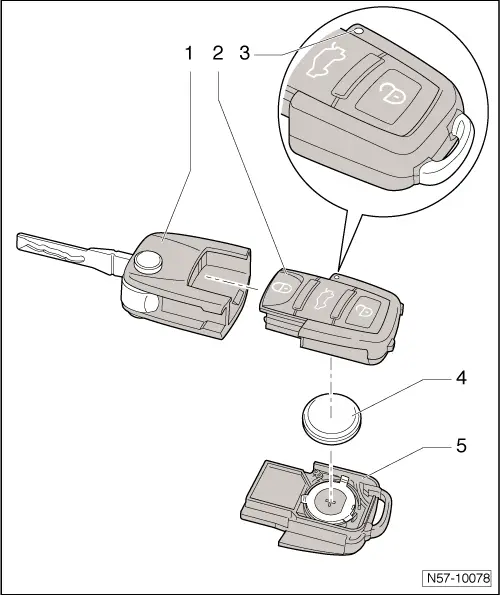

Summary of components:

1 - Key with transponder alternating code
2 - Radio container - top part
3 - LED
–  This diode must flash when operating the radio remote control.
–  If the LED does not flash, the battery is discharged and must be changed.
4 - Battery
5 - Radio container - bottom part

Remove the battery:

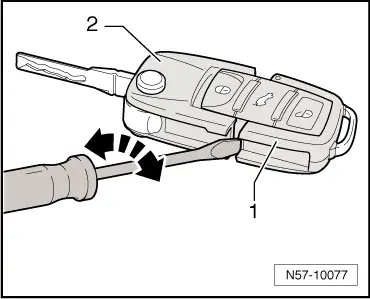

–  Insert a screwdriver in the slot between the radio container (Pos. 1) and the key (Pos. 2).
–  Turn the screwdriver in the -direction of the arrow- and thus separate the radio container from the key.
  N57-10077

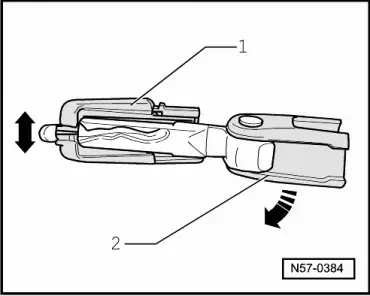

–  Press apart the radio container (Pos. 1) with the key bit of the key in the -direction of the arrow-.
  N57-0384
–  Unclip the battery (Pos. 1) from the brackets (Pos. 2) in the -direction of the arrow- using the screwdriver.
Installing:
  Note
t  Before installing the battery, it is absolutely necessary to press a random button once.
t  Thus, the radio container is reset to as-new condition and can only now detect a new battery.
t  Observe the polarity and the fitting location when installing the battery.
  N57-0417
–  Insert the battery (Pos. 1) with the positive terminal facing downwards in the radio container (Pos. 2) - the positive terminal is marked in the housing.
–  Gently tap on the battery so that it engages in the radio container.
–  Now assemble the cover together with the radio container (do not damage the seal).
–  Subsequently lock the radio container with the key.
  N57-0418
