Fabia Mk2

Removing and installing the battery for the foldable radio control key (new version)
Removing and installing the battery for the foldable radio control key (new version)

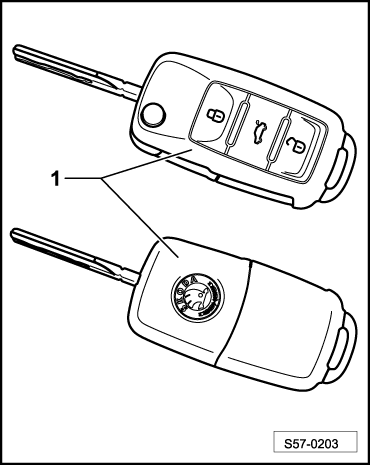

–  Key shape of the foldable radio control key (Pos. 1).
Removing:
  S57-0203

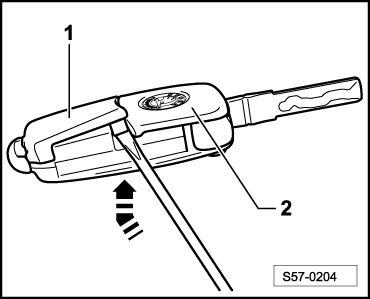

–  Slide a screwdriver in -direction of arrow- under the catch and lever the battery cover (Pos. 1) out of the key (Pos. 2).
  S57-0204
–  Clip the battery out of the brackets (Pos. 2) using the screwdriver.
Installing:
  Note
t  Before installing the battery, it is absolutely necessary to press a random button once. Thus, the radio container is reset to as-new condition and can only now detect a new battery.
t  Observe the polarity and the fitting location when installing the battery.

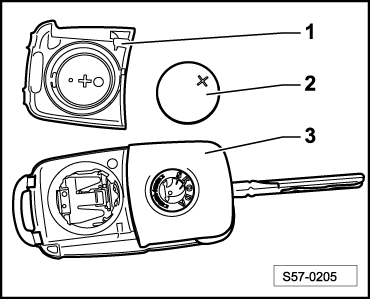

–  Insert the battery into the provided point and press slightly until it locks into position between the contacts.
–  Clip in the battery cover.
  S57-0205
