l - Removing and installing ATF pump up to the support pipe for B2 > < Removing and installing ATF radiator and ATF filler tube

Octavia Mk1

Summary of components - Disassembling and assembling planetary gear

Summary of components - Disassembling and assembling planetary gear
  Note
t  Repair instructions → Chapter.
t  For carrying out the repair of the automatic gearbox 01M, an exchange component is available that contains all the shift elements and the slide valve body → Chapter.
t  The gearbox identification characters are assigned to the exchange component → Electronic Catalogue of Original Parts.

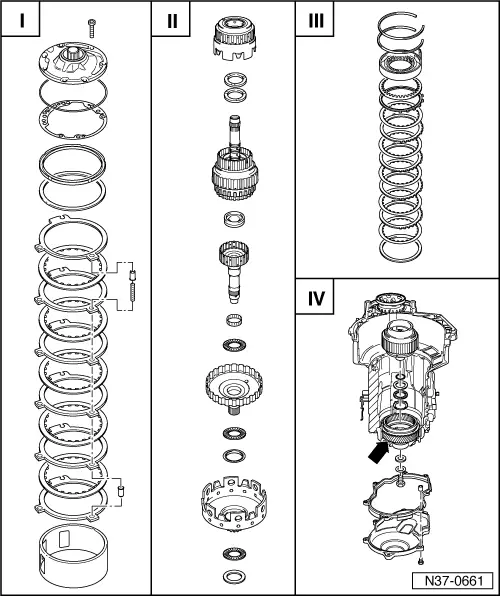

I - Removing and installing ATF pump up to the support pipe -B2- → Chapter
II - Removing and installing reverse gear - clutch up to large sun gear -K2- → Chapter
III - Removing and installing free wheel and reverse gear - brake -B1- → Chapter
IV - Removing and installing planet carrier → Chapter

  Note
t  There is no need to remove the drive gear -arrow-.
t  Removing and installing drive gear → Chapter.
t  Disassembling planetary gear → Anchor.
t  Assembling planetary gear → Anchor.
