Octavia Mk1
Power transmission
Automatic gearbox 01M
Automatic gearbox, control, assembly, housing
Inspect ATF level, if necessary top up
Inspecting ATF level
Inspecting ATF level
Inspecting ATF level
Note
t
Gearbox not in emergency running mode, ATF temperature not above 30 °C.
t
Vehicle on level ground.
t
Selector lever in “P”.
t
Air conditioning and heating must be switched off.
–
Attach the reservoir of the ATF filling system e.g. -V.A.G 1924- to the vehicle.
–
Connect vehicle system tester -V.A.G 1552- or vehicle diagnosis, measurement and information system -VAS 5051-
→ Chapter
.
–
Start engine.
–
Raise vehicle.
Note
Read off the temperature on the vehicle system tester -V.A.G 1552 -.
–
Enter 08 for the function “Read measured value block” and confirm entry with the
Q
key.
–
Enter 005 for the “display group number 005” and confirm with key
Q
.
Readout on display:
The first display field indicates the ATF temperature.
Note
The ATF temperature must not exceed 30°C.
WARNING
Wear safety goggles.
–
Position the catch pan under the gearbox.
Reading measured value block 5 ->
40° C 0011011 0 900/rpm
–

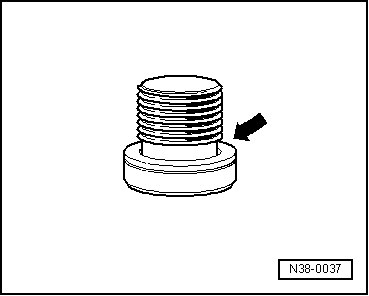

Remove screw plug for ATF inspection in the oil pan
-arrow-
.
The ATF present in the overflow tube flows out.
–
Check, if the overflow tube
-1-
is screwed in up to the stop (2 Nm; hexagon socket 5 mm). The overflow tube must not be unscrewed.
–
Bring ATF to test temperature.
Test temperature: 35°C to 45°C
1)
1)
for tropical climate 50°C
If ATF drips out of the hole:
It is not necessary to top up with ATF.
–
Tighten screw plug with new gasket ring to 15 Nm. This completes the ATF inspection.
If only the ATF present in the overflow tube flows out of the hole:
ATF must be topped up.
1 -
Screw plug
2 -
Overflow tube
3 -
Plug
4 -
Cap
