| Check dimensions on the right hanger for engine/gearbox unit: |
| l

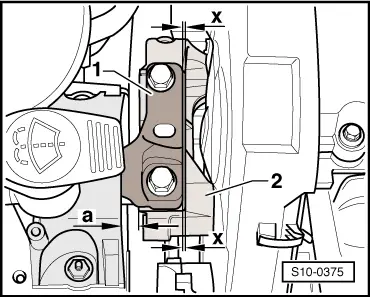

| Between engine bracket and engine support there must be a distance -a- of 10...13 mm. |
| l
| The cast iron edge on the engine support -2- must be parallel to the supporting arm -1- the dimension -x- must be the same at the front and rear. |
Note | The distance -a- can also be checked e.g. with corresponding round bars. |
| Only if there is an acoustic complaint (engine or gearbox knock on the frame side rail when cornering) and the dimension -a- is outside 10…13 mm: |
|
|
|
