Adjust assembly bracket Special tools and workshop equipment required t  Supporting device -T30099- t  Base -T30099/1- t  Adapter -MP9-200/3 (10-222A/3)- t  Hook for MP9-200 and T30099 -MP9-200/10 (10-222A/10) - t  Shackle -10-222A12- –  Remove the battery → Electrical System → Rep. Gr.27.

–  Unscrew screws -arrows- and remove batetry tray. –  Remove the plenum chamber cover → Body Work → Rep. Gr.66.

–  Install supporting device -T30099- and support engine in fitting position.   Note The illustration shows the 1.4 ltr. engine. –  Uniformly pre-tension the engine/gearbox unit with both spindles, but do not raise.

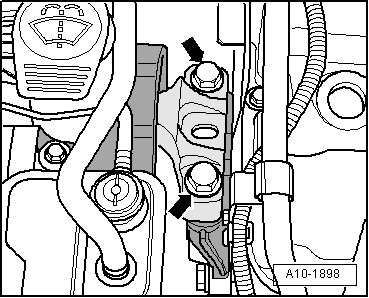

–  Unscrew the screws -arrows- of the unit mounting for engine.

–  Loosen the screws -arrows- of the assembly bracket at the gearbox only somewhat (less than 1 revolution). –  Successively replace all the screws of the assembly bracket (as long as it has not already been performed when installing the engine) and insert these loosely.

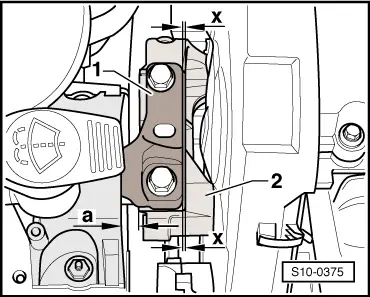

–  Move the engine/gearbox jack unit with a tyre lever between engine support -1- and supporting arm -3- for engine mount until the following dimensions are set: l  Between engine bracket and engine support there must be a distance -a- of 10 mm. l  The cast iron edge on the engine support -2- must be parallel to the supporting arm -1- the dimension -x- must be the same at the front and rear.   Note The distance -a- = 10 mm can be checked e.g. with suitable round bars. –  Tighten the screws for the engine side assembly bracket → Chapter.

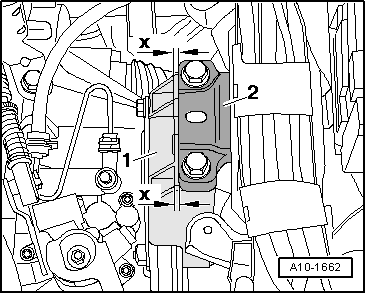

–  Make sure that on the gearbox side the edges of the supporting arm -2- and gearbox support -1- are parallel. l  Dimension -x- must be the same on both mount sides. –  Tighten the screws for the gearbox side assembly bracket → Chapter. Further installation occurs in reverse order.
