Replace the gasket ring of the gearshift shaft
Replace the gasket ring of the gearshift shaft
Special tools and workshop equipment required
t  Pipe section -MP3-479 (VW 423)-
t  Extraction hook -T20143/1-
Removing gasket
–  Remove the selector lever control cable from the gearbox.
Vehicles Octavia II and Superb II → Chapter
Vehicles Yeti → Chapter

–  Unscrew nut -arrow- of the gearshift shaft.
–  Carefully lever off the lever -A- from the gearshift shaft.
  S34-0926

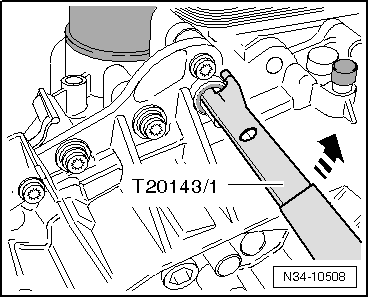

–  Lever out the gasket ring.
Installing gasket
–  Lightly oil new gasket ring at outer surface.
–  Fill half the space between the sealing lip and dust lip with sealing grease -G 052 128-.
  N34-10508

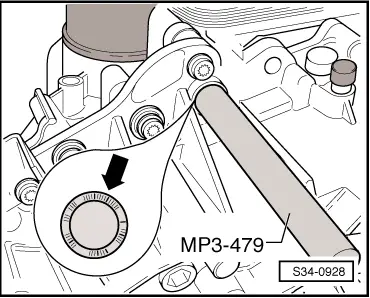

–  Drive in the new gasket ring up to stop. Do not tilt the gasket ring during this process.
  Note
The inscription -arrow- on the gasket ring must point outwards (to the pressing tool).
The gearbox shift lever only fits in one position on the serration.
–  Insert gearbox shift lever and tighten screws to tightening torque → Chapter.
–  Attach the selector lever control cable to the gearbox.
Vehicles Octavia II and Superb II → Chapter
Vehicles Yeti → Chapter
–  Adjust the selector lever control cable at the gearbox → Chapter.
  S34-0928
