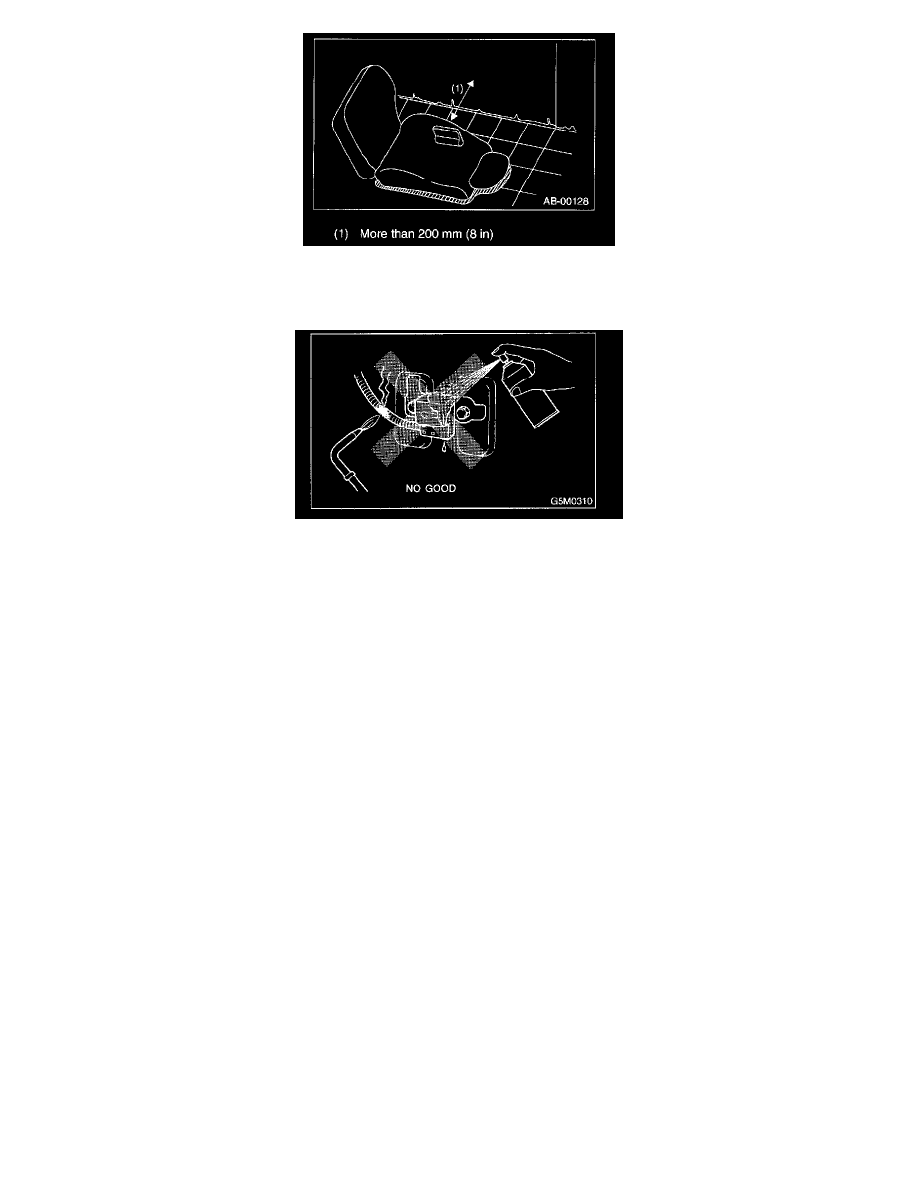

The removed front seat with the airbag module must be kept at least 200 mm (8 in) away from walls and other objects.
When painting or performing sheet metal work on the front part of the vehicle, including the front wheel apron, front fender, and front side frame,
remove the front sub sensors and wire harness of the airbag system.

When painting or performing sheet metal work on the side of the vehicle, including the side sill, center pillar, and front and rear doors, remove the side
airbag sensors and wire harness of the airbag system.
