Forester F4-2.5L SOHC (2004)

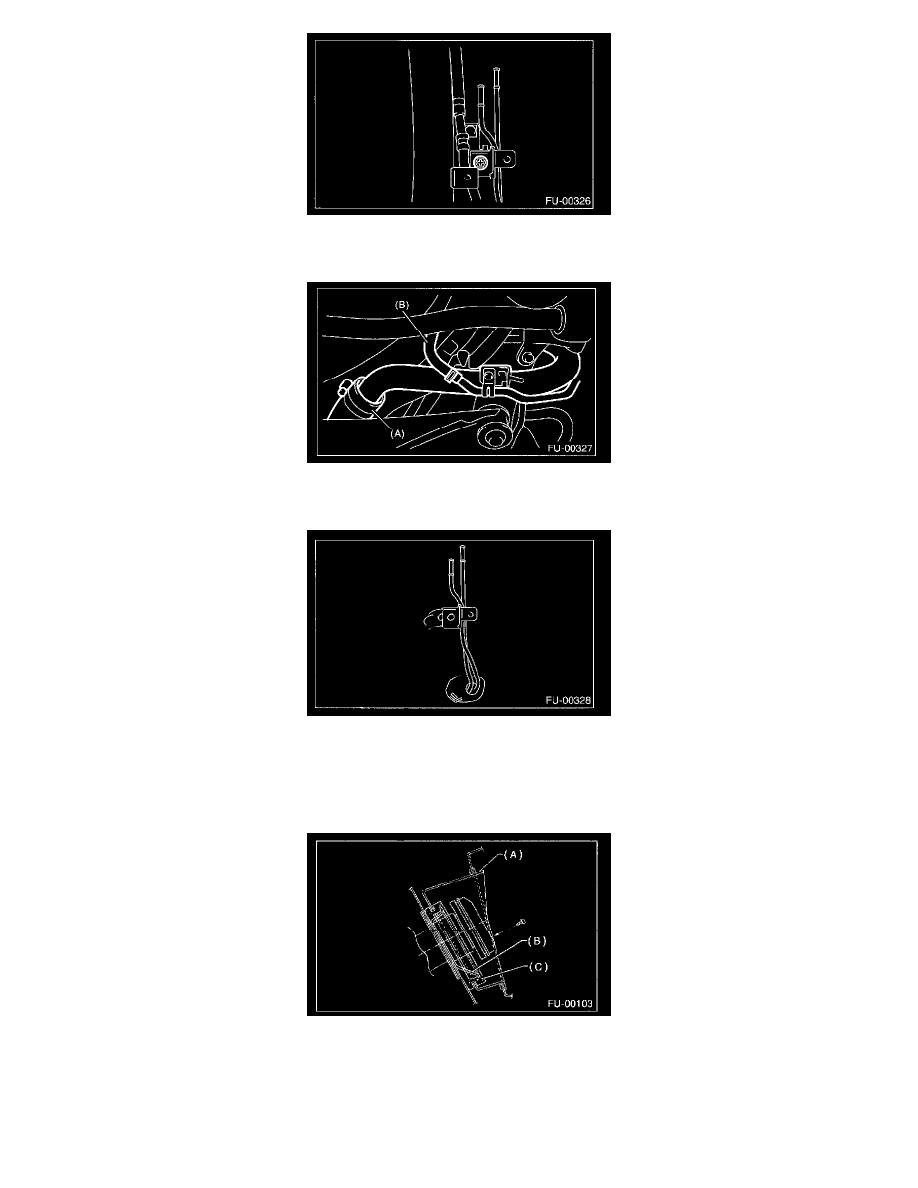

13. Remove the bolts which hold the fuel filler pipe bracket on the body.
14. Loosen the clamp and separate the fuel filler hose (A) from the fuel filler pipe.
15. Move the clip and separate the evaporation hose (B).
16. Remove the fuel filler pipe to under side of the vehicle.
17. Remove the evaporation pipe together with clip from the body.
INSTALLATION
1. Hold the fuel filler flap open.
2. Set the fuel saucer (A) with rubber packing (C) and insert the fuel filler pipe into hole from the inner side of apron.
