Forester F4-2.5L SOHC (2004)

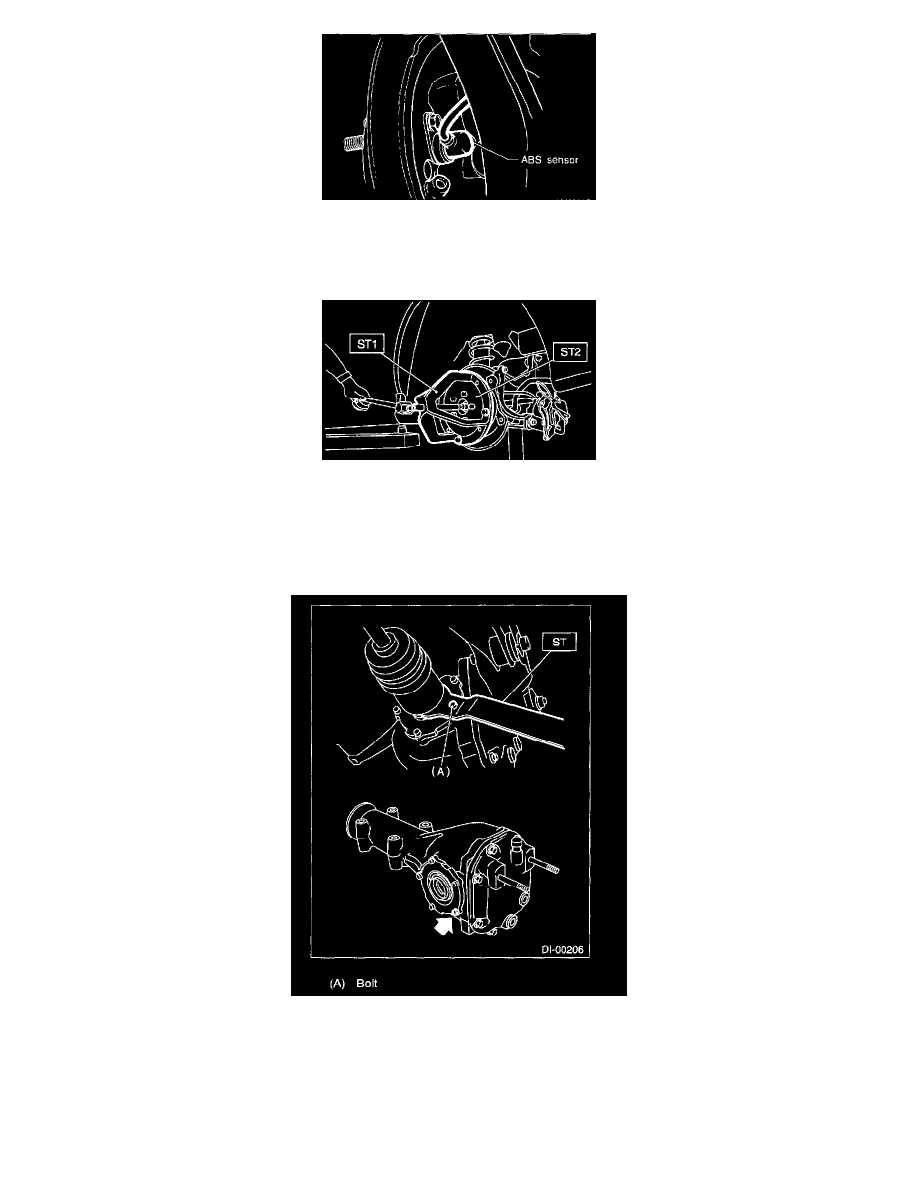

8. Remove the rear ABS sensor from back plate.
9. Remove the rear drive shaft from rear axle. If it is hard to remove, remove the brake disk rotor using the ST1 and ST2.
ST1 926470000AXLE SHAFT PULLER
ST2 927140000AXLE SHAFT PULLER PLATE
CAUTION:
^
Do not hammer the drive shaft when removing.
^
Do not damage the oil seal and tone wheel.
10. Remove the rear drive shaft from rear differential using ST.
ST 208099PA100 DRIVE SHAFT REMOVER
NOTE: Fit ST to the bolt (A) as shown in the figure to avoid damage on the side bearing retainer.
Rear Drive Shaft Installation
INSTALLATION
1. Insert the rear drive shaft into rear axle.
2. Temporarily tighten the axle nut.
