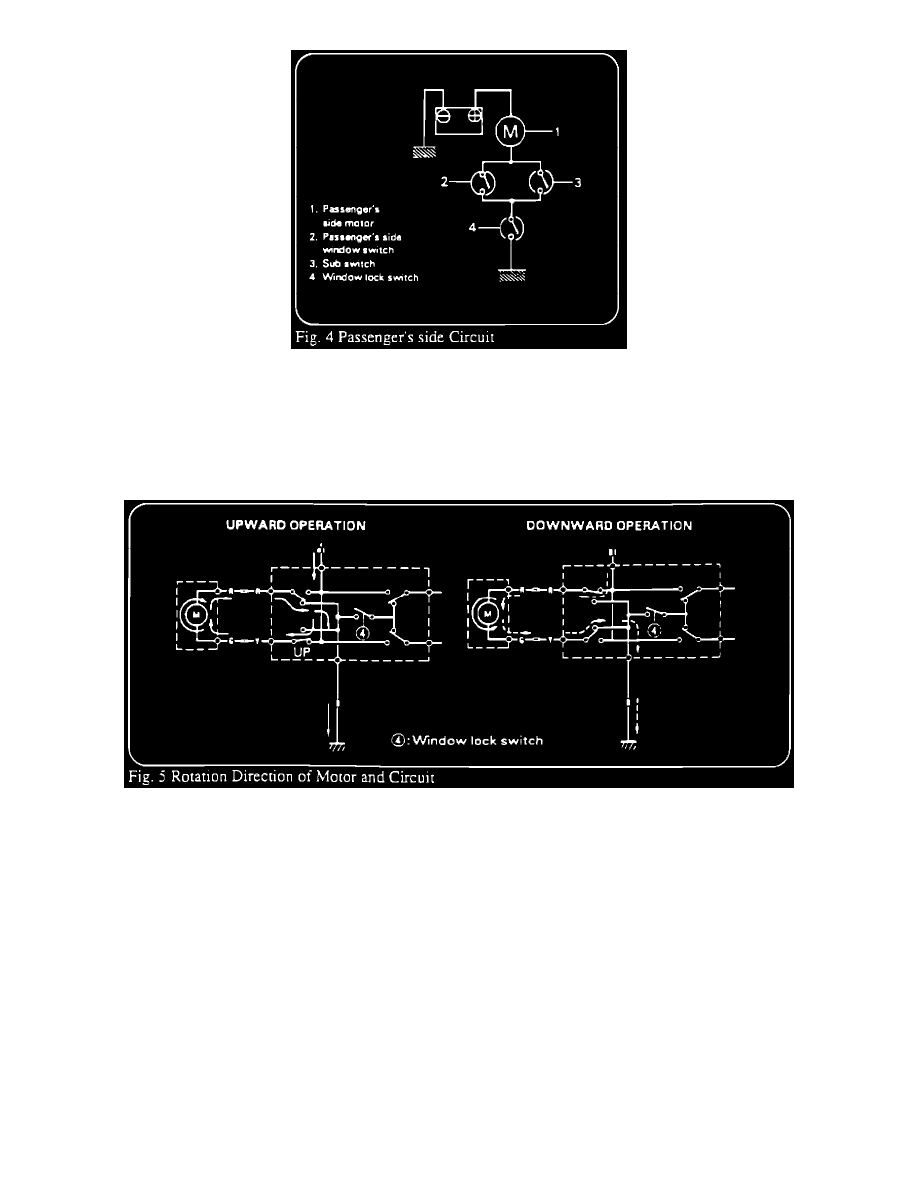

As in Fig. 4, the window lock switch (4) also in the power window main switch locks passenger's side window. As long as this switch is depressed (the
switch is turned "OFF" in the circuit), the passenger's side window does not move even when the passenger's side sub switch (3) or driver's side
passenger switch C2) are operated. In this system, up and down movement of the window is done as follows.
As power window switch is operated in one direction or the other, an electric current flows to the window regulator motor to run it. Whether the motor
turns clockwise or counterclockwise is determined by the direction in which the electric current flows. Thus, the window moves up or down depending
on the rotation direction of the motor.
The solid arrow line in Fig. 5 shows the electric current flow when the driver's side switch (1) in Fig. 3) of the power window main switch is operated for
upward movement and the broken arrow line for downward movement.
