Verona L6-2.5L (2005)
Alignment: Service and Repair
Front
Toe Adjustment

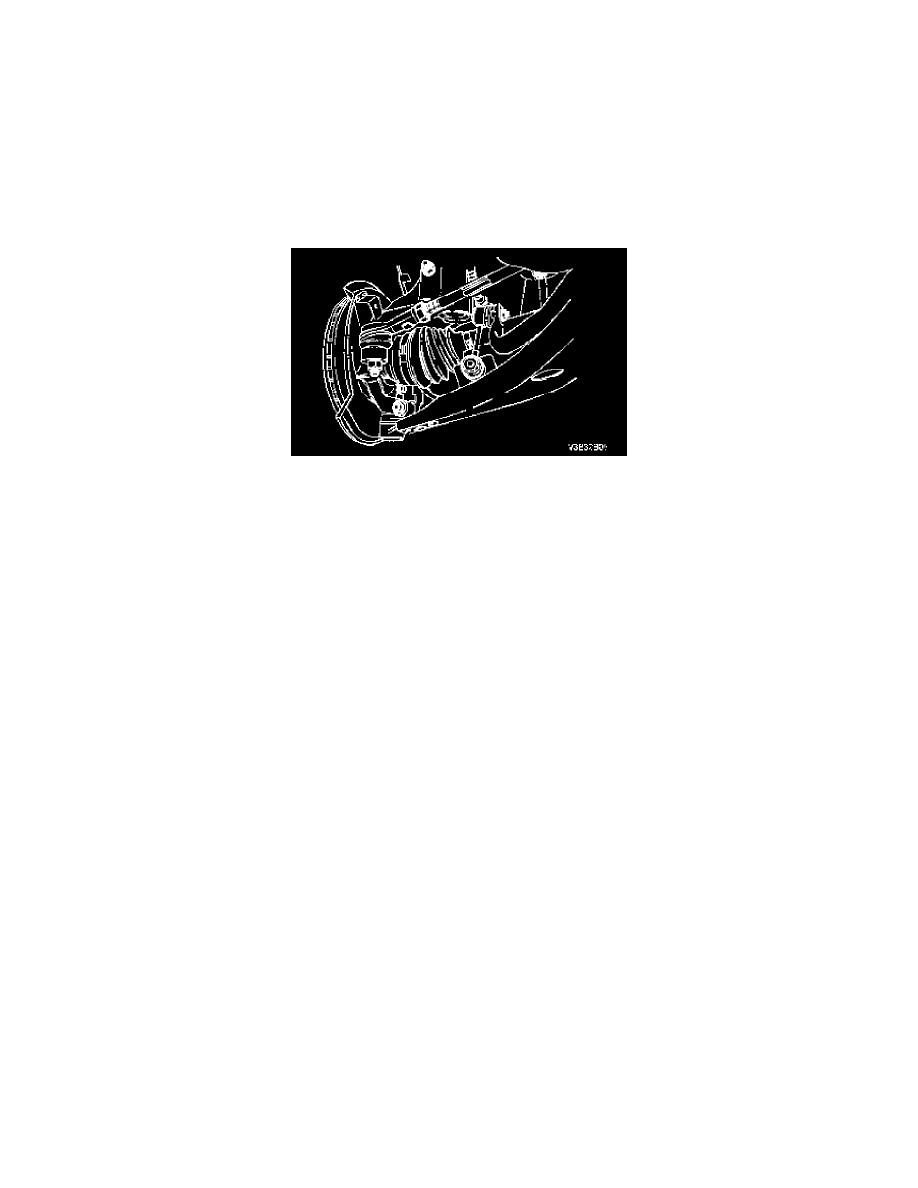

Front Toe Adjustment
1. Disconnect the outer tie rods from the knuckle assemblies.
2. Loosen the front toe adjusting nut.
3. Turn the right and the left outer tie rods to align the toe to the proper specifications.
4. Hold the outer tie rod and tighten the front toe adjusting nut.
Tighten: Tighten the front toe adjusting nut to 64 Nm (47 ft. lbs.).
5. Reconnect the outer tie rods to the knuckle assemblies.
NOTE: In this adjustment, the right and the left tie rods must be equal in length, or the tires will wear unevenly.
Camber and Caster Check
Front Camber and Caster Check
The front camber and caster are not adjustable. Jounce the bumper three before measuring the camber or the caster in order to prevent an incorrect
reading. If the front camber or caster measurements deviate from the specifications, locate and replace or repair any damaged, loose, bent, dented, or
worn suspension part. If the problem is body related, repair the body.
