Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1039002.png)

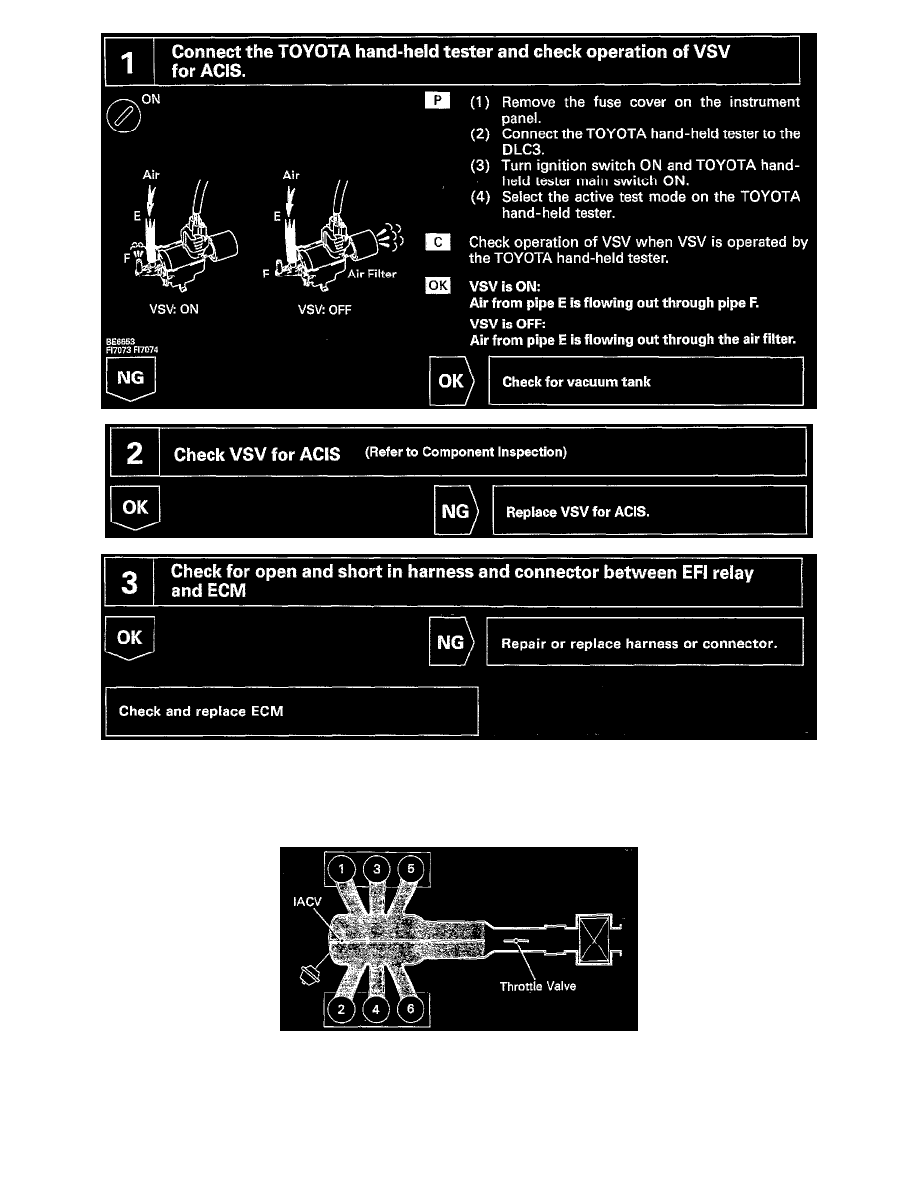

Inspection Using Generic OBDII Scan Tool
IACV Control VSV Circuit
CIRCUIT DESCRIPTION
This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency (ACIS:
Acoustic Control Induction System).
