Camry Coupe 2-Door V6-3.0L (1MZ-FE) (1996)
/Page-1039003.png)

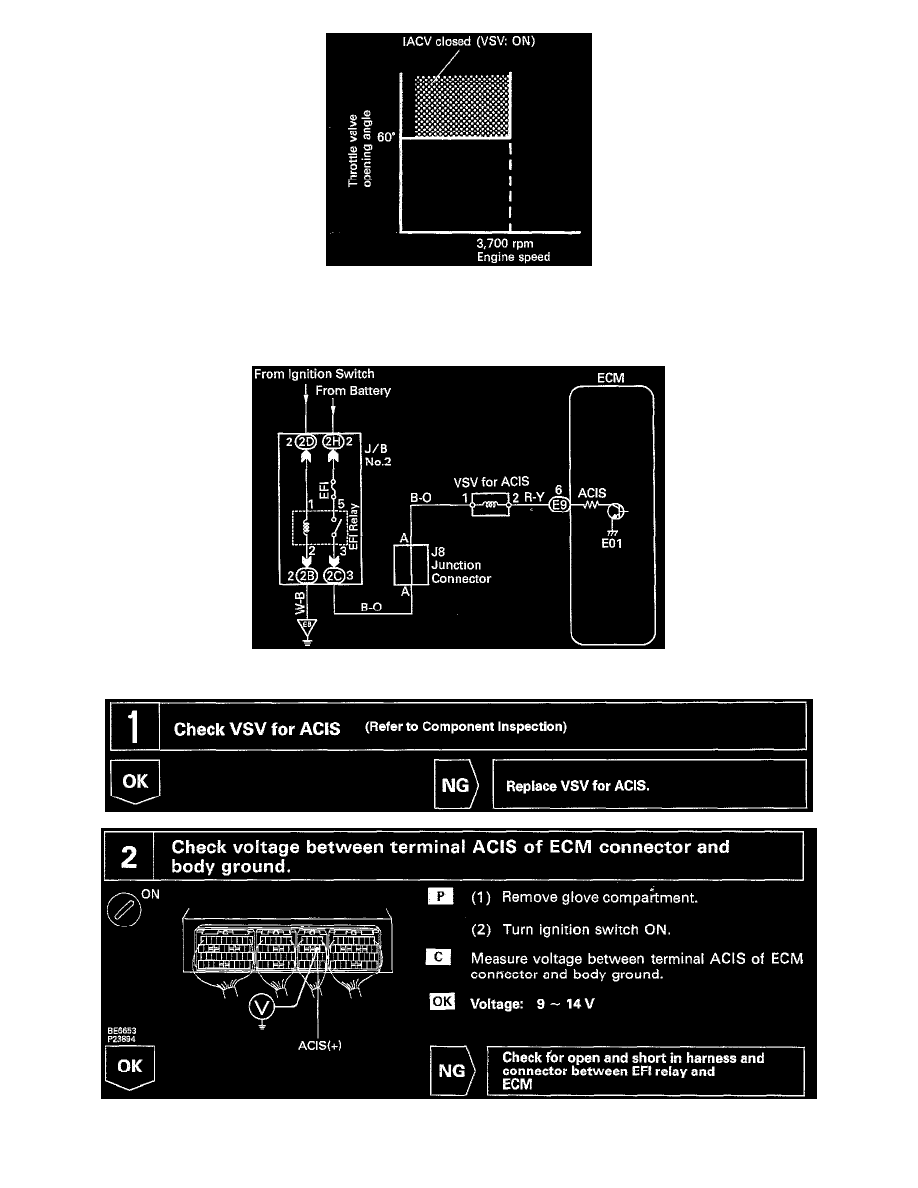

When the engine speed is 3,700 rpm or less and the throttle valve opening angle is 60° or more, the ECM turns the vacuum switching valve (VSV)
ON and closes the IACV. At all other times, the VSV is OFF, so the IACV is open.
WIRING DIAGRAM
INSPECTION PROCEDURE
