Sequoia 4WD V8-4.7L (2UZ-FE) (2006)
Hydraulic Control Assembly - Antilock Brakes: Service and Repair
REMOVAL

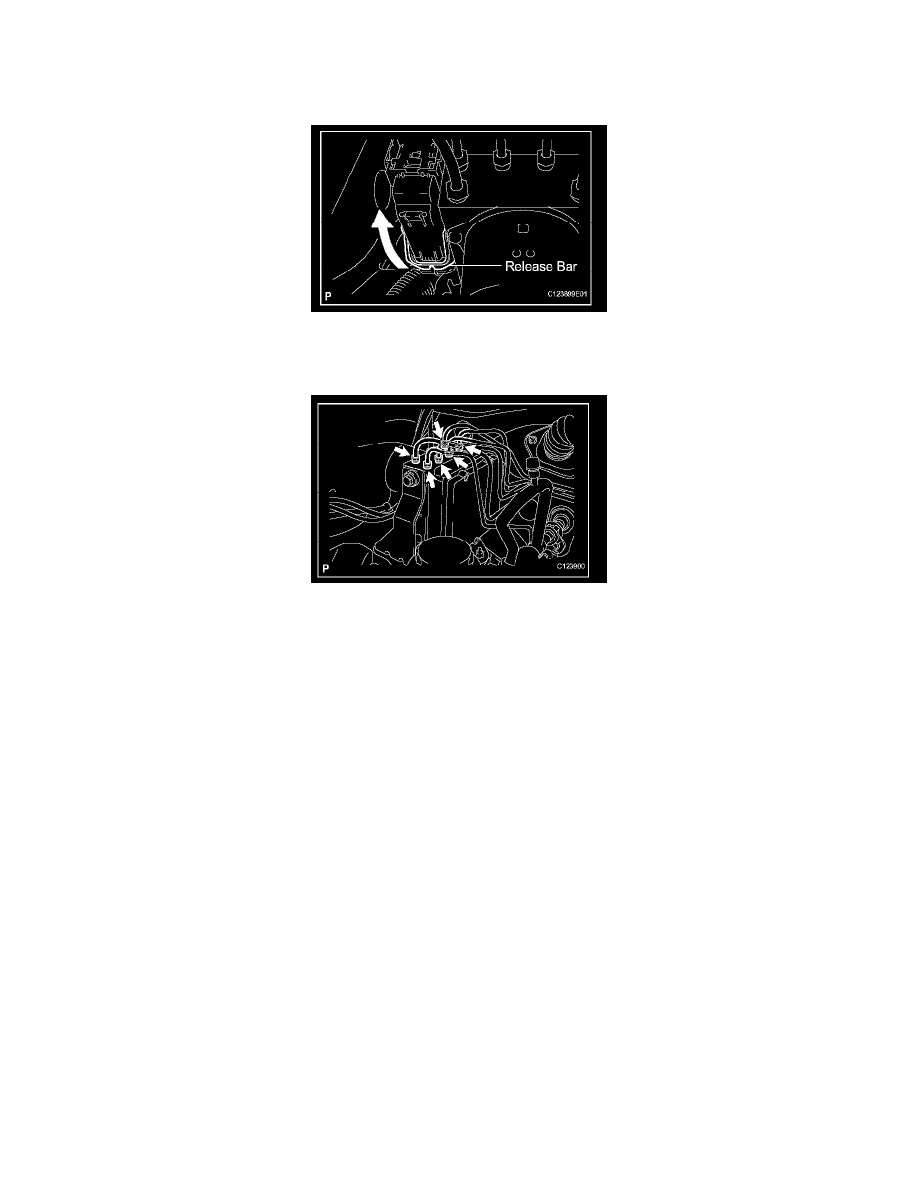

1. DISCONNECT CONNECTOR
a. Pull the release bar and disconnect the connector.
2. DISCONNECT BRAKE LINE
a. Using SST, disconnect the 6 brake lines from the actuator assembly.
SST 09023-00101, 09023-38201
Torque:
10 mm nut
15 N.m (155 kgf.cm, 11 ft.lbf)
12 mm nut
19.5 N.m (195 kgf.cm, 14 ft.lbf)
HINT:
-
When disconnecting the brake lines, use tags or make a memo to identify the place to reconnect.
-
At the time of installation, connect each brake line to the correct position.
3. REMOVE ABS AND TRACTION ACTUATOR ASSEMBLY
a. Remove the 3 nuts and actuator assembly with the actuator bracket.
Torque: 11 N.m (112 kgf.cm, 8 ft.lbf)
DISASSEMBLY
1. REMOVE BRAKE ACTUATOR BRACKET NO.1
a. Remove the 3 bolts and actuator bracket.
Torque: 9.5 N.m (97 kgf.cm, 84 ft.lbf)
b. Remove the 3 cushions from the actuator bracket.
2. REMOVE SKID CONTROL ECU
