Replace decorative films

  Remove

1.   Remove attaching parts such as rubber window seals and shaft strips
2.   Hear film slightly using a hot air blower and pull off
Object Number: 10679786  Size: DEFAULT


  Install

3.   Clean adhesion surface with silicone remover
Note:   Also pay attention to rear edges!
Object Number: 10679787  Size: DEFAULT


4.   Put decorative film in position (do not remove carrier film yet)
•   Place decorative film (2) in position and secure with adhesive tape (1) and (3)
Note:   Please ensure that decorative film is aligned with adjacent decorative films and window cut-outs during positioning!
•   Mark installation position
•   Remove decorative film
Object Number: 10679788  Size: DEFAULT

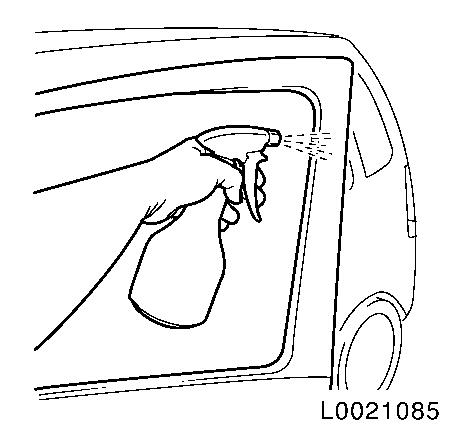

5.   Moisten the adhesion area
•   Spray water with washing-up liquid onto component adhesion area using spray bottle
Object Number: 10679789  Size: DEFAULT


6.   Carefully remove decorative film from carrier film, position and stick on
7.   Drag air bubbles toward the outside using a plastic spatula
Object Number: 10679790  Size: DEFAULT


8.   Fold over outer edges or push into recesses and glue on
Object Number: 10679791  Size: DEFAULT


9.   Fit attaching parts
