Astra J

Dome Lamp Wiring Harness Replacement



2190570




Callout
Component Name

Warning: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.

Caution: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

Preliminary Procedures

1. Disconnect the negative battery cable. Refer to . Battery Negative Cable Disconnection and Connection
2. Disable the SIR system. Refer to . SIR Disabling and Enabling
3. Remove the headlining trim panel. Refer to . Headlining Trim Panel Replacement

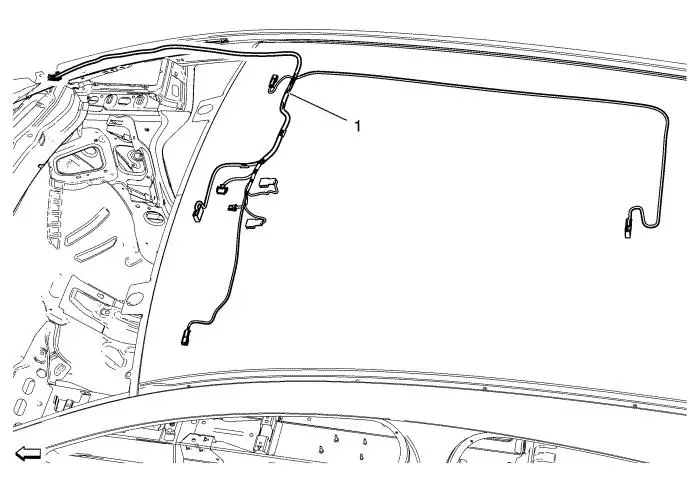

1
Dome Lamp Wiring Harness

Procedure

1. Disconnect electrical connectors.
2. Unclip wiring harness
