Body SystemsHeadlamp Replacement - Xenon

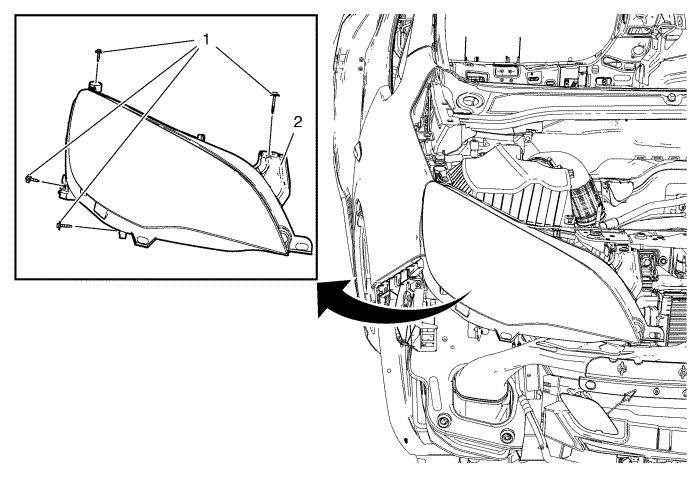

Headlamp Replacement (Xenon) Callout Component Name Preliminary Procedures 1. Disconnect the negative battery cable. Refer to . Battery Negative Cable Disconnection and Connection 2. Remove front bumper fascia. Refer to . Front Bumper Fascia Replacement 3. Remove the front bumper fascia guide - inner. Refer to Front Bumper Fascia Guide Replacement 1 Headlamp Bolt (Qty: 4) Caution: Refer to Fastener Caution . 2 Headlamp Procedure 1. Remove 2 screws from the front bumper fascia inner guide and remove the upper part of the guide. 2. Disconnect electrical connector. 3. Remove headlamp ballast. Refer to . Headlamp Ballast Replacement 4. Replace bulbs as needed. 5. Aim the headlamps after installation. Refer to . Headlamp Aiming
