Instrument Panel Compartment Lamp Replacement (Lighting)

Make

Vauxhall

Model

Astra J

Section

Lighting › Repair Instructions › Instrument Panel Compartment Lamp Replacement

Body SystemsInstrument Panel Compartment Lamp Replacement

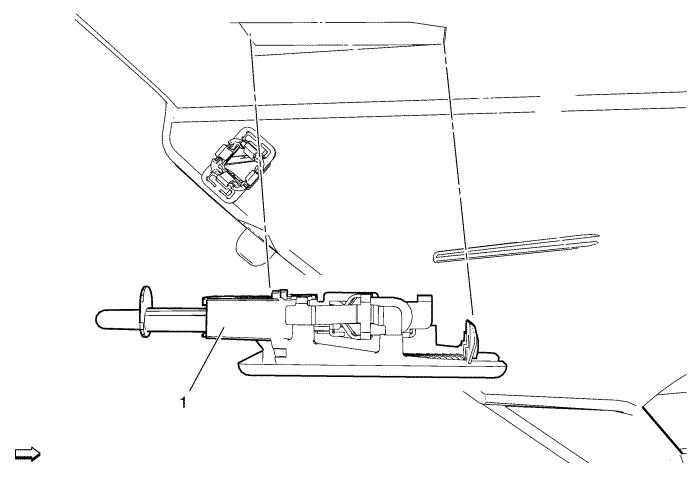

Instrument Panel Compartment Lamp Replacement Callout Component Name Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . 1 Instrument Panel Compartment Lamp Procedure 1. Disconnect electrical connector. 2. Replace the bulb, as needed. 3. Observe the correct installation of the instrument panel compartment lamp plunger.
