Tail Lamp Replacement - 5-Door Estate 35 (Lighting)

Make

Vauxhall

Model

Astra J

Section

Lighting › Repair Instructions › Tail Lamp Replacement - 5-Door Estate 35

Body SystemsTail Lamp Replacement - 5-Door Estate 35

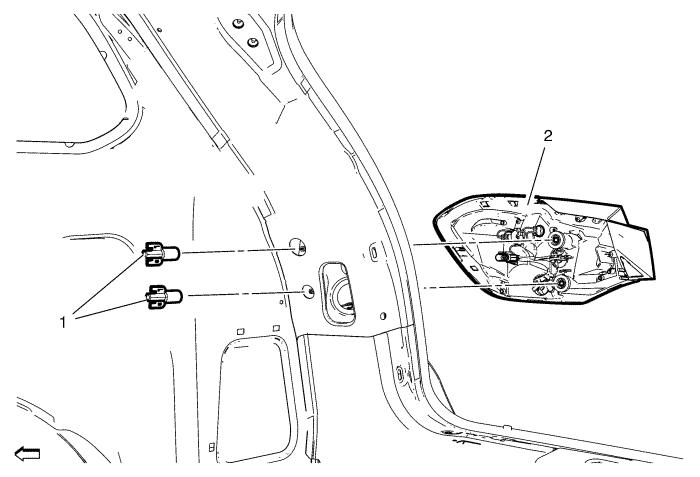

Tail Lamp Replacement (5-Door Wagon 35) Callout Component Name 1 Tail Lamp Nut (Qty: 2) Caution: Refer to Fastener Caution . 2 Tail Lamp Warning:  Refer to Halogen Bulb Warning . Procedure 1. Disconnect electrical connector. 2. Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket. 3. Replace the bulb, as needed.
