Vauxhall Astra J05 · Body Systems
05 · Body & interior

Reverse Lamp Replacement - 5-Door Hatchback 68 (Lighting)

Make
Vauxhall
Model
Astra J
Section
Lighting › Repair Instructions › Reverse Lamp Replacement - 5-Door Hatchback 68
Body SystemsReverse Lamp Replacement - 5-Door Hatchback 68

Backup Lamp Replacement (5-Door Hatchback 68)

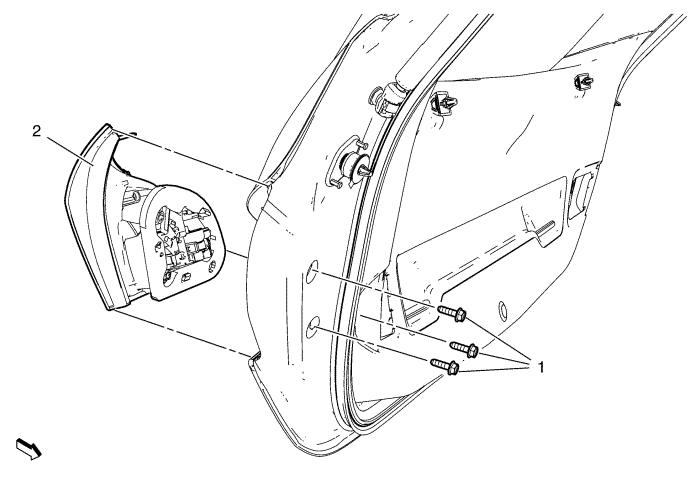

2189909




Callout
Component Name

Preliminary Procedure

Remove the right liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .

1
Backup Lamp Bolt (Qty: 3)

Caution: Refer to Fastener Caution .

2
Backup Lamp

Procedure

1. Disconnect electrical connector.
2. Replace the bulb, as needed.
