Headlamp Replacement - Halogen (Lighting)

Make

Vauxhall

Model

Astra J

Section

Lighting › Repair Instructions › Headlamp Replacement - Halogen

Body SystemsHeadlamp Replacement - Halogen

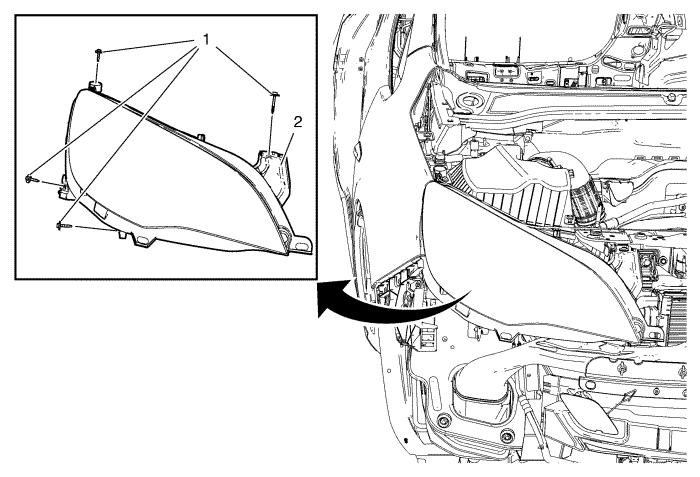

Headlamp Replacement (Halogen) Callout Component Name Preliminary Procedures 1. Remove front bumper fascia. Refer to . Front Bumper Fascia Replacement 2. Remove the front bumper fascia guide-inner. Refer to . Front Bumper Fascia Guide Replacement 1 Headlamp Bolt (Qty: 4) Caution: Refer to Fastener Caution . 2 Headlamp Warning:  Refer to Halogen Bulb Warning . Procedure 1. Disconnect electrical connector. 2. Replace bulbs as needed. 3. Aim the headlamps after installation. Refer to . Headlamp Aiming
