Astra J

Front Bumper Fascia Replacement (5-Door Hatchback 68 and Estate 35)

Removal Procedure


           2699242


1. Remove the front bumper fascia upper bolts (1).

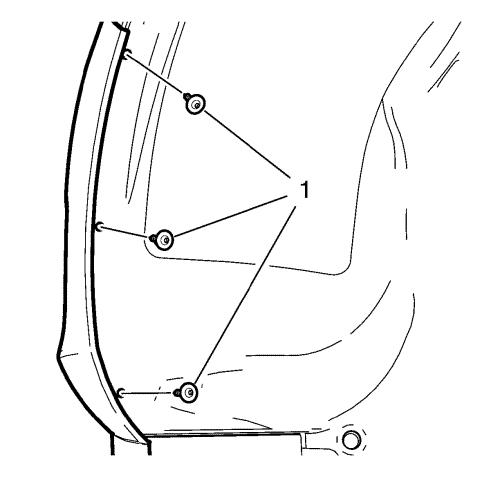

           2699243


2. Remove the front wheelhouse liner bolts (1) on both sides.

           2699244


3. Loosen the front bumper lower impact bar bolts (1) on both sides.
4. Remove the front bumper fascia retainers (1).

           2699245



Note:  Use care when removing the fascia. Fascia might rip apart if forced.
5. Pull the front bumper fascia (1) carefully outward and use a plastic trim tool in order to release the retaining tabs from front bumper fascia guides.
6. Disconnect any electrical connectors.

           2699246


7. With the aid of an assistant remove the front bumper fascia (1).
8. Transfer or replace parts as needed.

Installation Procedure


           2699246


1. With the aid of an assistant install the front bumper fascia (1).
2. Carefully push in the retaining tabs of front bumper fascia into the front bumper fascia guides.
3. Connect any electrical connectors.

           2699244


4. Install the front bumper fascia retainers (2).

Caution: Refer to Fastener Caution .
5. Tighten the front bumper lower impact bar bolts (1) to 25 N·m (18 lb ft) .

           2699243


6. Install the front wheelhouse liner bolts (1) and tighten to 2.5 N·m (23 lb in) .

           2699242


7. Install the front bumper fascia upper bolts (1) and tighten to 2.5 N·m (23 lb in) .
