Catalytic Converter Replacement (1.6L LLU)

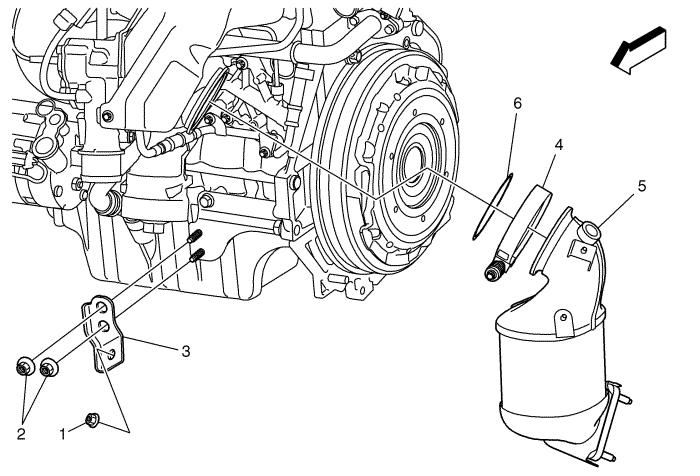

2156611




Callout
Component Name

Warning:  Refer to Exhaust Service Warning .

Warning:  Refer to Protective Goggles and Glove Warning .

Preliminary Procedures

1. Remove the exhaust front pipe. Refer to . Exhaust Front Pipe Replacement
2. Remove the heated oxygen sensor 1. Refer to . Heated Oxygen Sensor Replacement - Sensor 1


1
Catalytic Converter Brace Bracket Nut

Caution: Refer to Fastener Caution .

Tighten
23 N·m (17 lb ft)

2
Catalytic Converter Brace Bracket Nut (Qty: 2)

Tighten
23 N·m (17 lb ft)

3
Catalytic Converter Brace Bracket

4
Exhaust Pipe Clamp

5
Catalytic Converter

6
Catalytic Converter Seal

Tip
Install a NEW catalytic converter seal.
