Engine Coolant Thermostat Removal
| 1. |

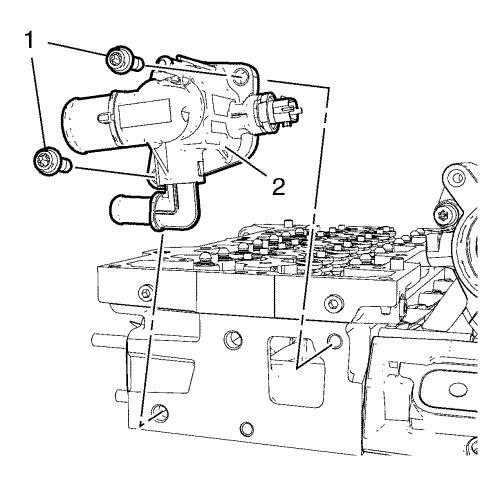

Remove the 2 engine coolant
thermostat bolts (1). |
| 2. |
Remove the engine coolant
thermostat (2). |
| 3. |
Remove the engine coolant
temperature sensor retainer clip (5) from the engine coolant
thermostat (1). |
| 4. |
Remove the engine coolant
temperature sensor (3). |
| 5. |
Remove the engine coolant
temperature sensor gasket (4). |
| 6. |
Remove the engine coolant
thermostat gasket (2). |
|
