Camshaft Sprocket Removal
Special Tools
For equivalent regional tools, refer to
Special Tools .
1. |

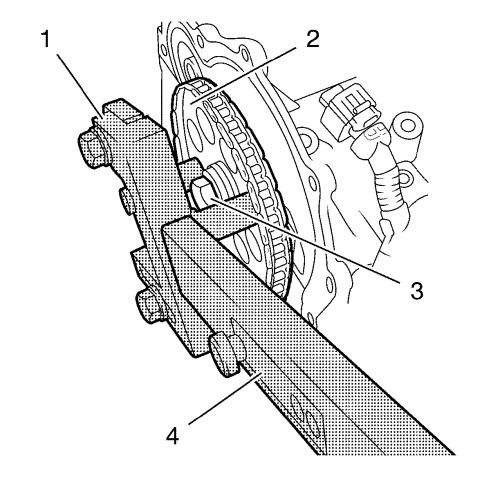

Install the EN-6347
holder (1) with the EN-956-1 extension (4)
to the camshaft sprocket (2). |
2. |
Loosen the camshaft sprocket
bolt (3). |
|
Note: Counterhold the
camshaft sprocket with the EN-6347 holder and the
EN-956-1 extension .
|
3. |
Remove the EN-6347
holder with the EN-956-1 extension from the
camshaft sprocket. |
4. |
Remove the camshaft sprocket
bolt (1). |
|
Note: Remove the
camshaft sprocket (2) from the camshaft at first then remove the
timing chain from the crankshaft sprocket (3).
|
5. |
Remove the camshaft sprocket
(2) with the timing chain (4). |
|
