Exhaust Camshaft Installation
|
Note: Mind the
markings on the camshaft bearing caps. Camshaft bearing caps should
be installed in their original position.
|
| 1. |
Lubricate camshaft and
camshaft bearing caps with engine oil. |
| 2. |

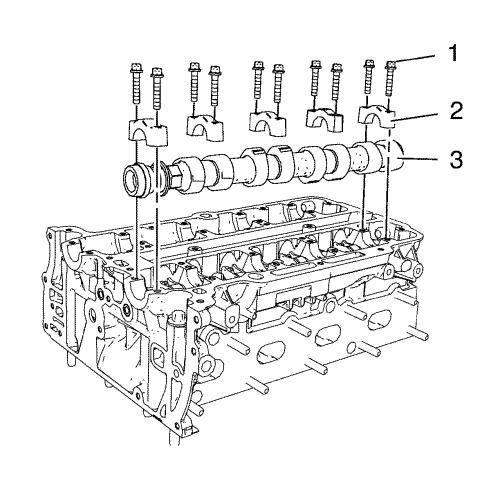

Install the exhaust camshaft
(3). |
| 3. |
Install the 5 camshaft bearing
caps (2). |
| 4. |
Install the 10 camshaft
bearing cap bolts (1) and handtighten. |
|
Note: Tighten the
camshaft bearing cap bolts one turn at a time in order to avoid
shape distortion of the camshaft.
|
| 5. |

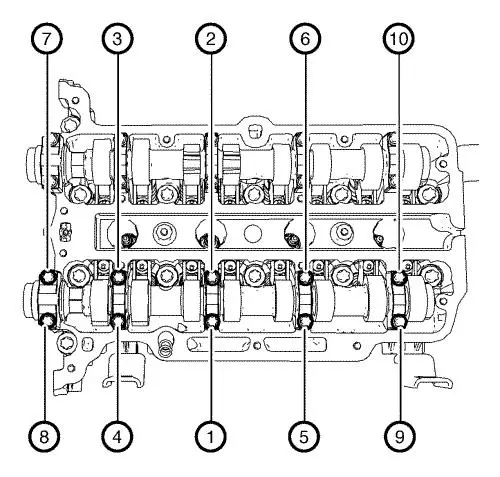

Tighten the camshaft bearing
cap bolts one turn at a time and in a spiral sequence as shown to
8 N·m (71 lb in) . |
|
