Exhaust Camshaft Removal
| 1. |

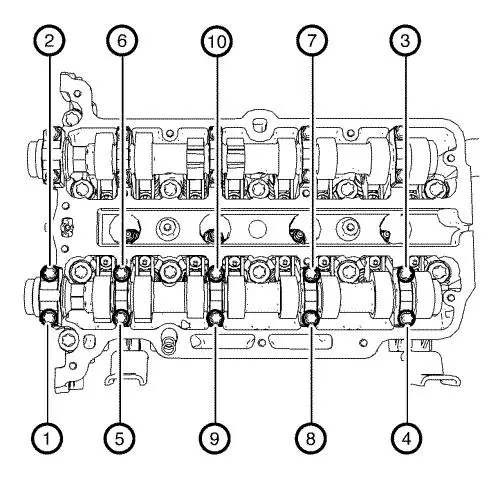

Remove the camshaft bearing
cap bolts in a spiral sequence as shown one turn at a time until
there is no spring tension pushing on the camshaft. |
|
Note: Mind the
markings on the camshaft bearing caps to ensure they will be
installed in the same position.
|
| 2. |
Remove the 10 camshaft bearing
cap bolts (1). |
| 3. |
Remove the 5 camshaft bearing
caps (2). |
| 4. |
Remove the exhaust camshaft
(3). |
|
