Astra J
Engine
Engine mechanics - 2.0L Diesel (LCD, LBS, LBX, LBY) / Repair Instructions
Engine Block Disassemble
Engine Block Disassemble
1.

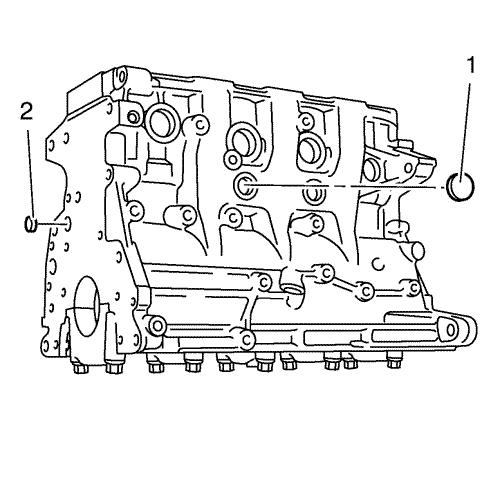

Remove the water jacket drain plugs (1, 2).
2.
Remove the crankshaft position (CKP) sensor (2) and bolt (1).
3.

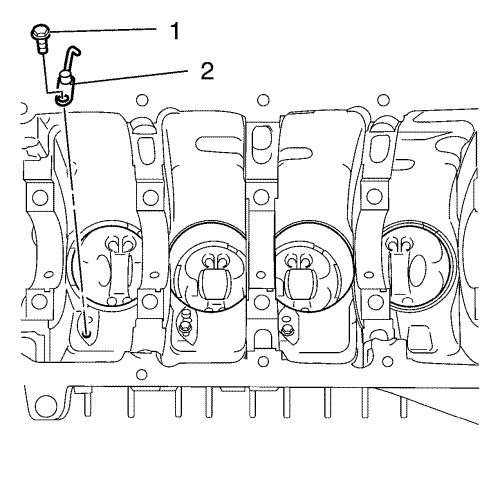

Remove the piston oil squirter bolt (1).
4.
Remove the piston oil nozzle (2).
