Astra J

Fuel Feed Hose Protector Installation

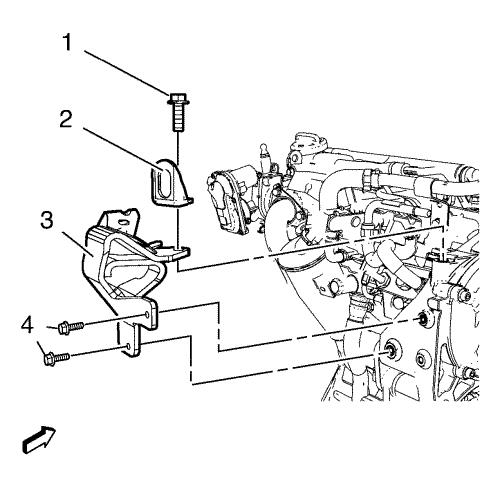

           2189689



1. Install the fuel feed hose protector (3).
2. Loosely install the 2 fuel feed hose protector bolts (4).
3. Install the engine lift bracket (2).

Caution: Refer to Fastener Caution .
4. Install the engine lift bracket bolt (1) and tighten to 50 N·m (37 lb ft) .
5. Tighten the 2 fuel feed hose protector bolts (4) to 9 N·m (80 lb in) .
