Astra J
Engine
Engine mechanics - 2.0L Diesel (LCD, LBS, LBX, LBY) / Repair Instructions
Intake Manifold Removal - 2.0L Diesel LBS, LBX, and LBY

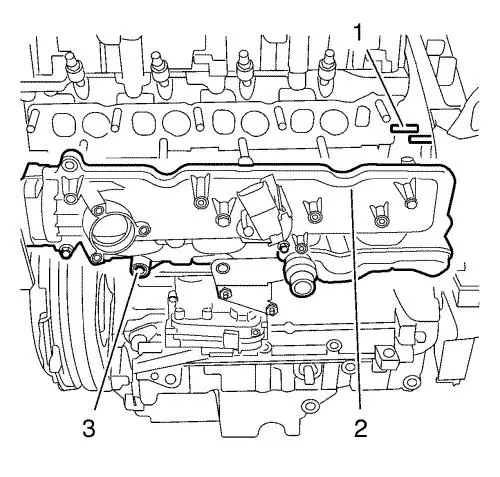

Intake Manifold Removal (2.0L Diesel LBS, LBX, and LBY)
1.
Remove the fuel injection pump bracket stud (1).
2.
Remove the 9 intake manifold nuts (3).
3.
Remove the 4 intake manifold gaskets.
4.
Remove the intake manifold (2).
