Fuel Injector Installation - LBQ, LBR, LBS, LBX, and LCD

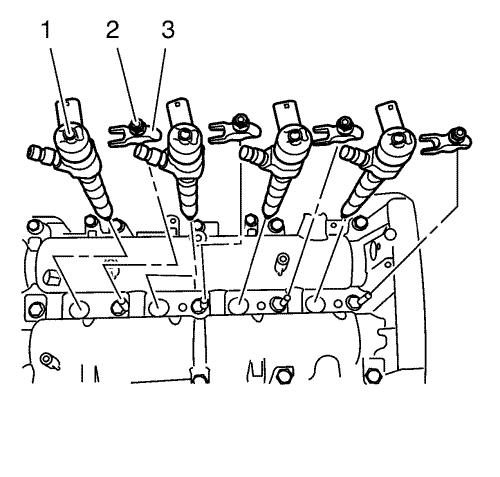

Fuel Injector Installation (LBQ, LBR, LBS, LBX, and LCD)
1.
Install the 4 fuel injectors (1).
2.
Install the 4 fuel injector brackets (3).
Caution:
Refer to
Fastener Caution
.
3.
Install the 4 fuel injector bracket nuts (2) and tighten to
25 N·m (19 lb ft)
.
