Oil Pan Assemble


           2190643



1. Install the positive crankcase ventilation tube (2).

Caution: Refer to Fastener Caution .
2. Install the positive crankcase ventilation tube bolt (1) and tighten to 9 N·m (80 lb in) .

           2190642

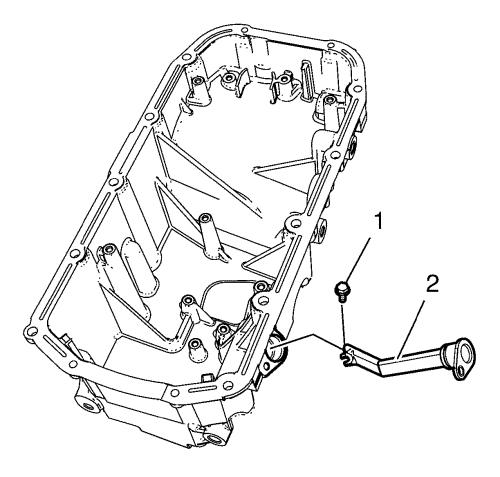

3. Install the oil suction pipe (2).
4. Install the 3 oil suction pipe bolts (1) and tighten to 9 N·m (80 lb in) .

           2190640

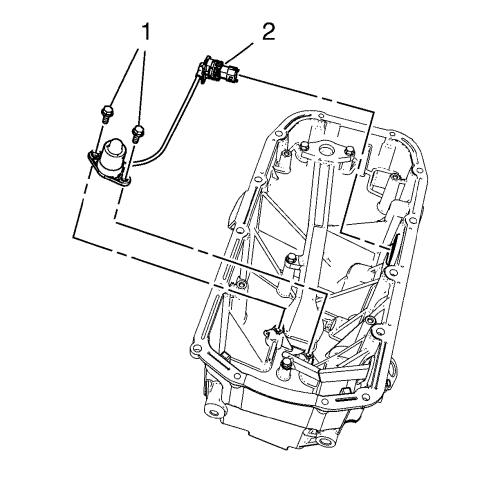

5. Install the oil level sensor (2).
6. Install the 2 oil level sensor bolts (1) and tighten to 9 N·m (80 lb in) .

           2190641



7. Install the oil pan baffle (2).
8. Install the 4 oil pan baffle bolts (1) and tighten to 9 N·m (80 lb in) .

           2190638



9. Install the oil drain screw gasket (2) and the oil drain screw (3) and tighten to 20 N·m (15 lb ft) .
10. Install the oil level sensor wiring harness plug holding clip (1).
