Turbocharger Removal - 2.0L Diesel LBS, LBX, and LCD
Turbocharger Removal (2.0L Diesel LBS, LBX, and LCD)
1.

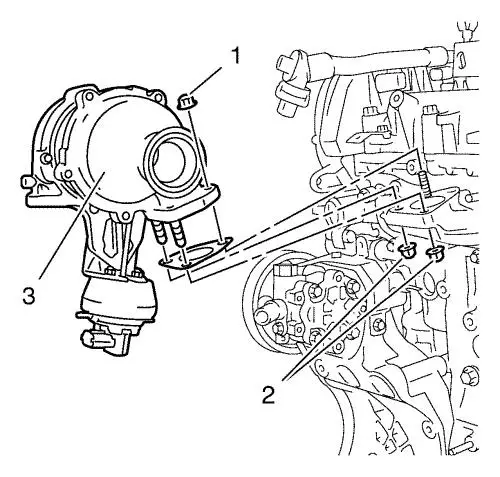

Remove the 3 exhaust manifold nuts (1, 2).
2.
Remove the turbocharger (3).
3.
Remove the turbocharger gasket.
4.
Clean all of the gasket surfaces.
