Astra J

Steering Angle Sensor Replacement

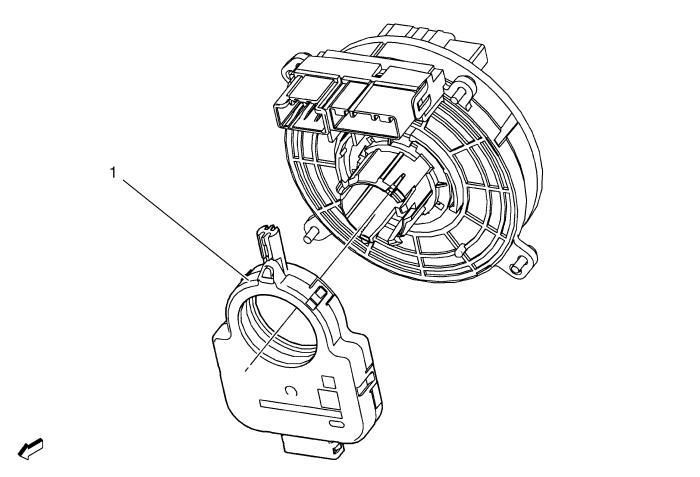

2188992




Callout
Component Name

Preliminary Procedures

Remove the steering wheel inflatable restraint module coil. Refer to Steering Wheel Airbag Coil Replacement .

1
Steering Wheel Position Sensor

Warning: Never rotate the steering angle sensor. Rotating the steering angle sensor could limit the operation of the electronic power steering (EPS) system, and result in personal injury.

Procedure

1. Press in the clip on the inflatable restraint steering wheel module clock-spring coil to remove the sensor.
2. Calibrate the steering angle sensor. Refer to . Steering Angle Sensor Centering
