Front Differential Assembly Disassemble

Table 1: Front Differential Bearing Removal
 Table 2: Front Differential Ring Gear Removal
 Table 3: Front Wheel Drive Shaft Seal Ring Removal - Differential Housing
 Table 4: Front Differential Bearing Removal - Differential Housing
 Table 5: Front Wheel Drive Shaft Seal Ring Removal - Adjuster Cup
 Table 6: Front Differential Bearing Removal - Adjuster Cup

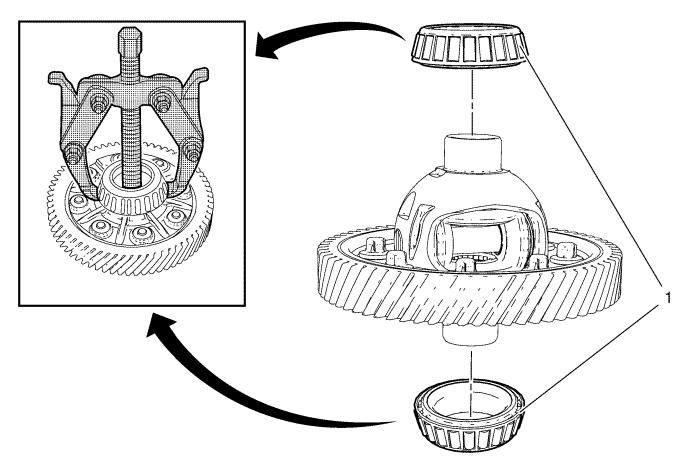

Front Differential Bearing Removal



2192366



Front Differential Bearing Removal


Callout
Component Name

1
Front Differential Assembly Bearing (Qty: 2)

Procedure

Assemble the DT-161-B   Puller with CH-757   Remover

Special Tools

•  DT-161-B   Puller
•  CH-757   Remover

For equivalent regional tools, refer to Special Tools .

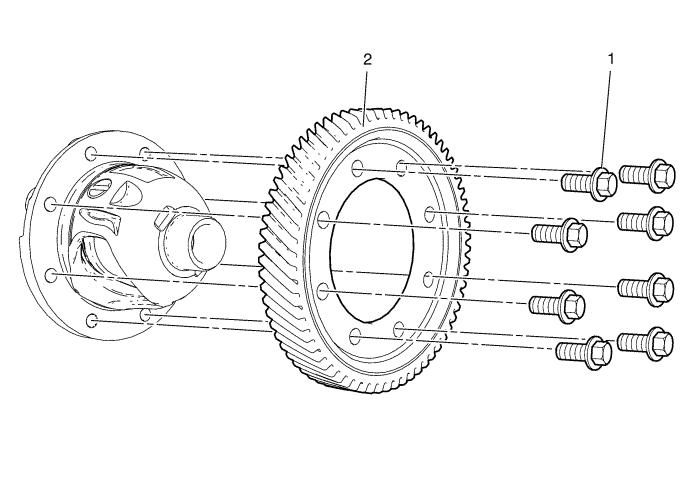

Front Differential Ring Gear Removal



2192367



Front Differential Ring Gear Removal


Callout
Component Name

1
Front Differential Ring Gear Bolt (Qty: 8)

Tip
Clamp the front differential ring gear into a bench vise using braces.

2
Front Differential Ring Gear

Tip
Mark direction of rotation.

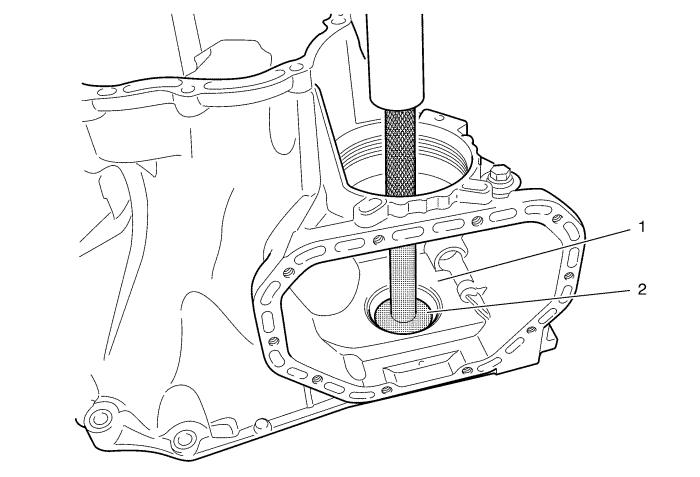

Front Wheel Drive Shaft Seal Ring Removal - Differential Housing



2189913



Front Wheel Drive Shaft Seal Ring Removal - Differential Housing


Callout
Component Name

1
Front Differential Housing

Procedure

Position the Front Differential Housing on the hydraulic press.

2
Front Wheel Drive Shaft Seal Ring

Procedure

Remove the front wheel drive shaft seal ring by pressing out with DT-454-2   Remover and DT-454-4   Remover .

Special Tools

DT-454-B   Remover / Installer


Front Differential Bearing Removal - Differential Housing



2027496



Front Differential Bearing Removal - Differential Housing


Callout
Component Name

1
Front Differential Housing

Procedure

Position the front differential housing on the press and support with CH-500-2   Remover .

Special Tools

CH-500-A   Remover / Installer

2
Front Differential Bearing

Procedure

Remove the front differential bearing by pressing out with DT-304   Remover and DT-451-1   Remover .

Special Tools

•  DT-304   Remover
•  DT-451   Remover / Installer



Front Wheel Drive Shaft Seal Ring Removal - Adjuster Cup



2027522



Front Wheel Drive Shaft Seal Ring Removal - Adjuster Cup


Callout
Component Name

1
Front Differential Bearing Adjuster Cup

2
Front Wheel Drive Shaft Seal Ring

Procedure

Remove the front wheel drive shaft seal ring by pressing out with DT-454-2   Remover and DT-454-4   Remover .

Special Tools

DT-454-B   Remover / Installer

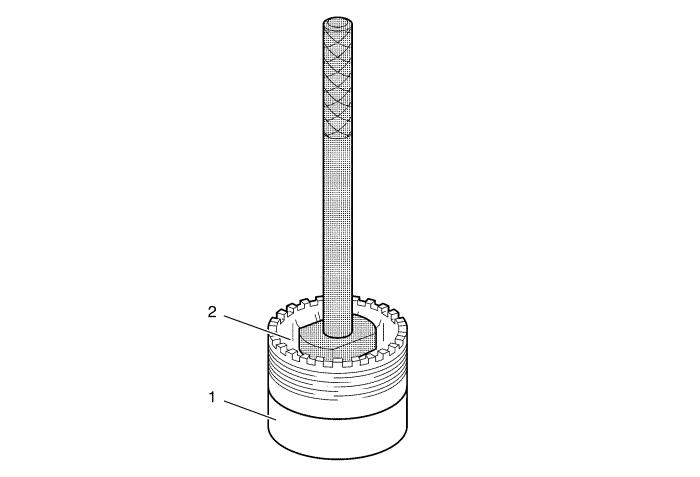

Front Differential Bearing Removal - Adjuster Cup



2027997



Front Differential Bearing Removal - Adjuster Cup


Callout
Component Name

1
Front Differential Bearing Adjuster Cup

Procedure

Position the front differential bearing adjuster cup on the press and support with CH-466-2   Remover .

Special Tools

CH-466-A   Remover / Installer

2
Front Differential Bearing

Procedure

Remove the front differential bearing by pressing out with DT-304   Remover and DT-451-1   Remover .

Special Tools

•  DT-304   Remover
•  DT-451   Remover / Installer
