Brake Lines, Partial Replacement
 Remove
| 1. |

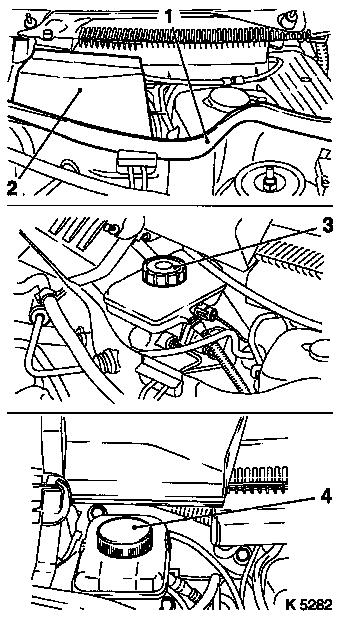

Pull seal (1) away from plenum chamber as far as necessary
| • |
Raise covering flap (2) for brake master cylinder
|
|
| 2. |
Detach closure cap (3) from brake fluid reservoir.
| • |
Correct brake fluid reservoir so that it reaches the "MAX"
mark
|
| • |
Seal with MKM-558-10 (4)
|
|
|
|
Important: The separation point
must be positioned near a fastening point – clip (1) or
shackle. Only one separation point per brake line is
permissible
|
| 3. |
Detach fastening bolt (2) for clip
| • |
Cut brake lines with pipe cutter and deburr
|
| • |
Place union nut (3) onto brake pipe and flange pipe end
Note: Avoid deformation
of remaining brake lines.
|
|
|
|
Install
| 5. |
Insert connecting piece, connect and screw on brake line -
tightening torque 16 Nm
|
| 6. |
Insert brake line in clip
| • |
Attach with fastening bolt
|
|
| 7. |
Remove MKM-558-10 (1) from brake fluid tank.
|
| 8. |
Bleed brake system and check for leaks
|
| 9. |
Install closure cap (2) on brake fluid reservoir
|
| 10. |
Close closure cap (4)
| • |
Place seal (3) on plenum chamber
|
|
|
|
|
