Cabrio GLX L4-2.0L (ABA) (2001)
-
Remove side trim.

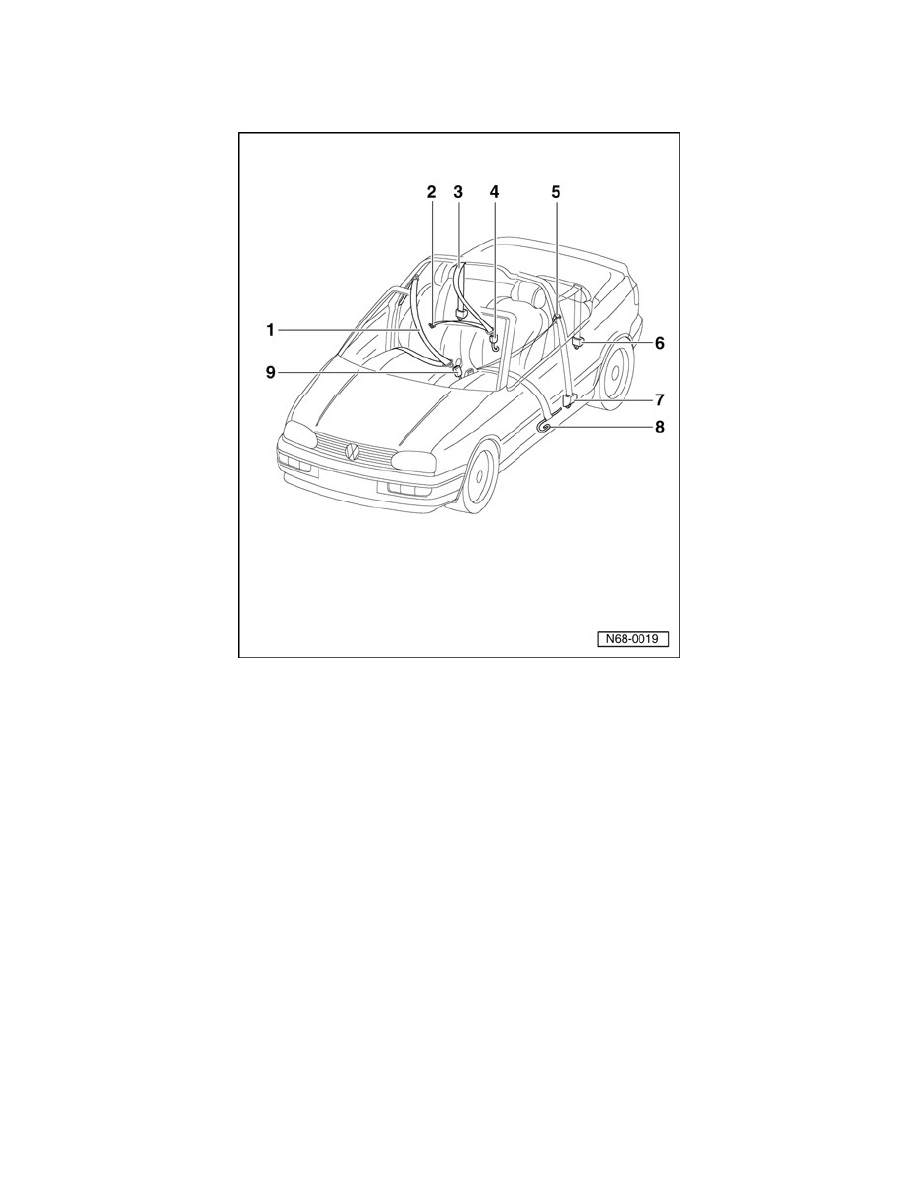

1
-
Front seatbelt inertia reel
-
Retaining tabs determine position of front seatbelt inertia reel
2
-
Bolt
-
40 Nm
3
-
Anchor rail
4
-
Bolt
-
40 Nm
5
-
Eye cap
Front Seat Belts With Belt Tensioning, Removing and Installing
Front Seat Belts With Belt Tensioning, Removing And Installing
CAUTION:
-
Belt tensioner units must be removed before starting any body disassembly, straightening or any other body repair work
-
After an accident in which one or more belt tensioners have been activated, both seat belts must be replaced (belts will no longer retract)
