Gearbox: Electrical test
Test table
|
Switch to voltage measuring range 20 V
|
|
Test step
|

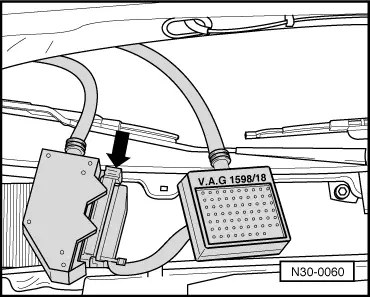

V.A.G 1598 sockets
|
Test of
|
▪ Test conditions
- Additional operations
|
Specified value
|
Rectifying fault
|
|
1
|
22 + 1
|
Voltage supply from control unit -J327-
|
▪ Ignition switched on
min.
max.
|
10.8 V
16 V
|
- Check wire from contact 1 to earth
Check wire from contact 22 to terminal 15 central electrics
|
|
2
|
23 + 1
|
Terminal 30
|
▪ Ignition switched off
min.
max.
|
10.8 V
16 V
|
- Check wire from contact 1 to earth
Check wire from contact 23 to terminal 30 central electrics
|
|
Switch to resistance measuring range 20 K ω
|
|
Test step
|
V.A.G 1598 sockets
|
Test of
|
▪ Test conditions
- Additional operations
|
Specified value
|
Rectifying fault
|
|
3
|
13 + 14
|
Gearbox speed sender -G38-
|
min.
|
0.74 K ω
|
- Check wiring and connections according to current flow diagram, repair if necessary
=> "Current flow diagrams, Electrical fault finding and Fitting locations" Binder, Golf 1992 ▸, Vento 1992 ▸
|
|
|
|
|
|
max.
|
0.84 K ω
|
- Replace gearbox speed sender -G38-
=>Electronic components, Page 01-5
|
|
4
|
32 + 33
|
Engine speed sender -G28-
|
min.
|
0.70 K ω
|
- Check wiring and connections according to current flow diagram, repair if necessary
=> "Current flow diagrams, Electrical fault finding and Fitting locations" Binder, Golf 1992 ▸, Vento 1992 ▸
|
|
|
|
|
|
max.
|
0.80 K ω
|
- Replace engine speed sender -G28-
=>Electronic components, Page 01-5
|
|
Switch to resistance measuring range 200 ω
|
|
Test step
|
V.A.G 1598 sockets
|
Test of
|
▪ Test conditions
- Additional operations
|
Specified value
|
Rectifying fault
|
|
5
|
45 + 9
|
Clutch positioner vacuum valve -N183-
|
min.
|
3.6 ω
|
- Check wiring and connections according to current flow diagram, repair if necessary
=> "Current flow diagrams, Electrical fault finding and Fitting locations" Binder, Golf 1992 ▸, Vento 1992 ▸
|
|
|
|
|
|
max.
|
3.8 ω
|
- Replace clutch positioner vacuum valve -N183-
=>Electronic components, Page 01-5
|
|
6
|
45 + 31
|
Clutch positioner vent valve -N184-
|
min.
|
3.6 ω
|
- Check wiring and connections according to current flow diagram, repair if necessary
=> "Current flow diagrams, Electrical fault finding and Fitting locations" Binder, Golf 1992 ▸, Vento 1992 ▸
|
|
|
|
|
|
max.
|
3.8 ω
|
- Replace clutch positioner vent valve -N184-
=>Electronic components, Page 01-5
|
|
