Golf Mk4
Power transmission
Automatic gearbox 01M
Automatic gearbox, control, assembly, housing

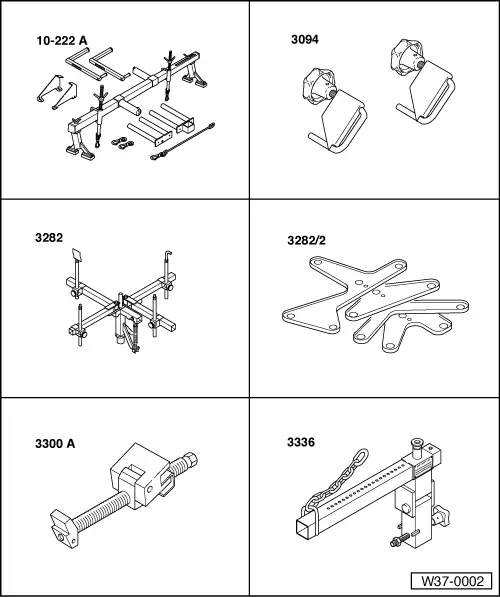

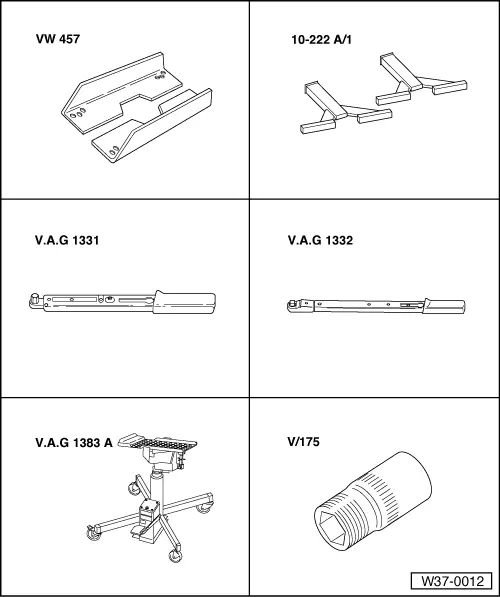

Removing and installing gearbox - required tools
Modifying support rails VW 457
Modifying support railsVW 457
Modifying support rails -VW 457-

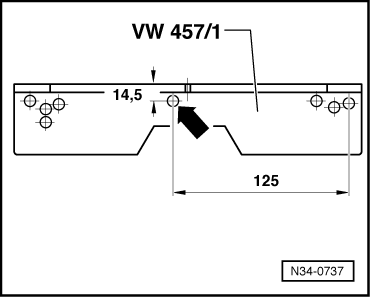

A hole is required to secure support rail.
Dimensions in millimetres
–
If required hole is not present, drill a 8.5 mm diameter hole in rail.
