Golf Mk4

Transporting automatic gearbox
Transporting automatic gearbox
Special tools and workshop equipment required

t  Gearbox mounting support -3336-
  W00-0208

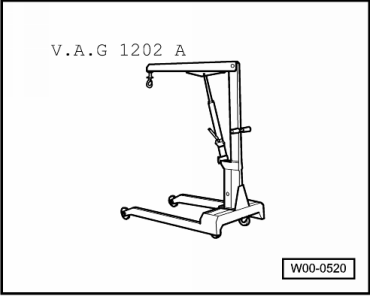

t  Workshop hoist -V.A.G 1202 A- or workshop hoist -VAS 6100-
Use gearbox lifting tackle -3336- to transport automatic gearbox as well as to set up gearbox support -3282-.
  W00-0520

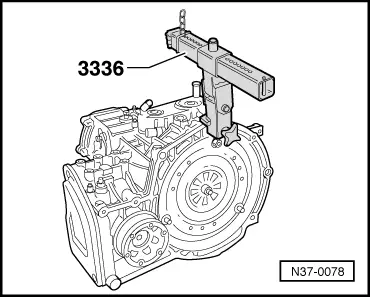

–  Secure gearbox lifting tackle -3336- to gearbox housing flange.
–  Position locking pins so that 8 holes are visible in chain direction.
–  Lift gearbox with workshop hoist -V.A.G 1202 A-or workshop hoist -VAS 6100- and gearbox lifting tackle -3336-.
Securing gearbox to assembly stand → Chapter
  N37-0078
