Renewing oil seal for selector shaft
Renewing oil seal for selector shaft
Renewing oil seal for selector shaft
Special tools and workshop equipment required
t

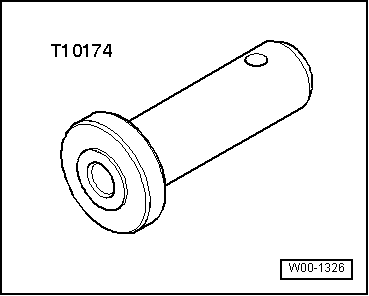

Thrust piece -T10174-
–
Remove multifunction switch -F125-.
–
Carefully lever out selector shaft seal using a screwdriver. Do not damage selector shaft.
–

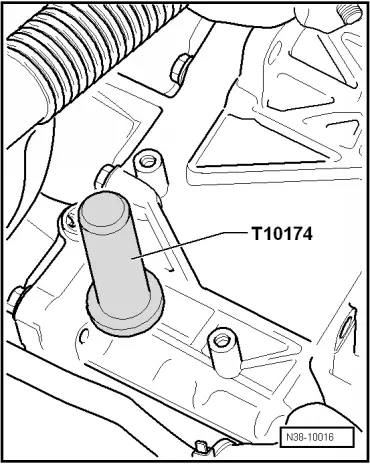

Drive in new seal to stop with thrust piece
-T10174-
. Do not cant oil seal in the process.
–
Adjust multifunction switch -F125-.
