Vehicle electricsGeneral notes

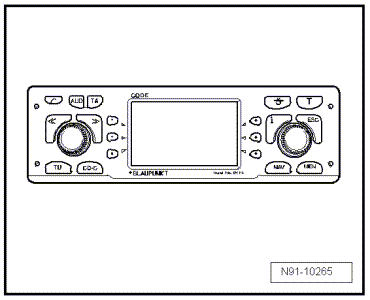

| The radio navigation system “DX-R4” combines the functions of a navigation system with those of a high-quality RDS car radio. |
| The following is installed in the single DIN housing for radio navigation system: |
| t
| A navigation system with GPS satellite receiver and |
| t
| A CD drive for the audio and navigation system |
| The radio navigation system “DX-R4” comes in two versions, one in which 4 internal outputs feed the 4 loudspeakers or the version in which 2 loudspeakers are fed via the internal outputs. |
| The CD drive can read a CD ROM for navigation or a music CD. Whilst a music CD is playing, only restricted operation of the navigation system is possible. |
Note | t
| Music CDs with 8 cm diameter (mini discs) cannot be played. |
| t
| Mixed-mode CDs (CDs having both computer data and music) cannot be played. |
| The window aerial is used for radio reception, and the roof aerial for the navigation function. |
| To expand the functions a connection to operate a telephone is provided. |
| It is not possible to operate a CD changer, sound amplifier and multifunction steering wheel in combination with the radio navigation system “DX-R4”. |
|
|
|
